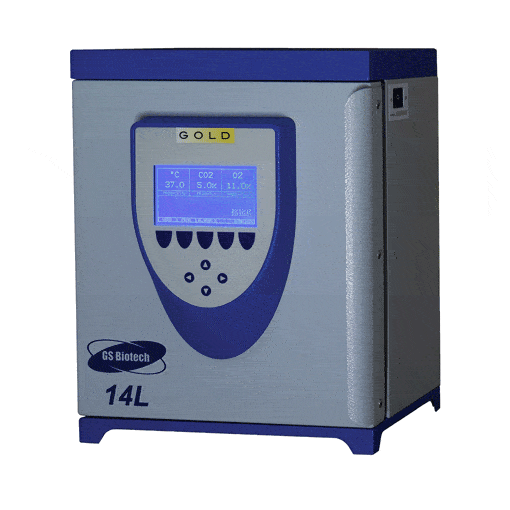

14L Gold Co2 Cell Culture Incubator
14LGold Co2 Cell/ Tissue culture incubator manufactured by GSBiotech
Features
- Optimum chamber environment, profiled heating creates gentle circulation –no fan or HEPA
- Seamless chamber, with rounded interior corners makes cleaning
- Removable shelves are non-tip.
- Sealed inner glass door allows chamber Viewing
- Temperature range programmable from 4 °C above ambient to 50 °C.
- Infrared CO2 Sensor, with auto self-referencing
- CO2 range programmable from 0.2 to 20 %.
- Large, easy to read LCD display with LED
- Removable, seamless, stainless steel humidity
- 25mm access port for cable pass-through
- HEPA filtration for all incoming
- Large range of options allows you to configure each incubator for each
- Optional data capture and reporting for QA and verification
- Year Warranty (extendable)
Control System Safety Features Include:
- Independent over temperature cut-out.
- Calibration and programmed data internally backed up to guard against
14L Model Options
| 1. Oxygen Control Oxygen control option is available: 1-19%This control systems consist of nitrogen injection to accurately control the desired below ambient Oxygen level.
2. RS232 – Communication Socket An RS232 socket can be fitted to enhance the communication function to allow for external data monitoring, this option does notinclude on-board data logging. | GOLD MODEL OPTION ONLY
SILVER MODEL OPTION ONLY |
| Features | 14L Gold | |
| 170L SEAMLESS CHAMBER WITH FULLY ROUNDED CORNERS | · | |
| DRY WALLED CHAMBER WITH NO CONDENSATE SPOT | · | |
| INFRARED HERMETICALLY SEALED CO2 SENSOR | · | |
| CO2 AUTO REFERENCE SYSTEM | · | |
| SEALED INNER GLASS DOOR | · | |
| LARGE LCD DISPLAY WITH LED BACKLIGHT | · | |
| 25mm ACCESS PORT WITH SEALING PLUGS | · | |
| RS232 OUTPUT SOCKET | · | |
| ON BOARD DATALOGGER | · | |
| O2 CONTROL 1-19%* | ||
| Options | 14L Gold | |
| 230V 50/60Hz | 14G-230 | |
| 110v 50/60Hz | 14G-110 | |
| O2 CONTROL 1-19% | 14G-711 | |
| RS232 OUTPUT SOCKET | · |
- Standard Equipment *Option available X Option not available
| Accessories | Order code |
| CO2 CYLINDER AUTO CHANGEOVER UNIT | GSB-5000 |
| CO2 TWO STAGE REGULATOR | GSB-5010 |
| IN LINE PRESSURE REGULATOR | GSB-5030 |
| CO2 SUPPLY LINE FILTERS (2OFF) | GSB-5020 |
| CO2 AUTO REFERENCE FILTER | GSB-5060 |
| HUMIDITY TRAY | GSB-6200 |
| CO2 ELECTRONIC ANALYSER | GSB-6150 |
| CO2 /O2ELECTRONIC ANALYSER | GSB-6831 |
| STACKING KIT | GSB-1180 |
Technical Specification
| TEMPERATURE MANAGEMENT | CO2 CONTROL | ||
| RANGE: | 4°C ABOVE AMBIENT TO 50°C | RANGE: | 0.2 – 20% |
| CONTROL: | ± 0.1°C | CONTROL: | ± 0.1°C |
| STABILITY: | ± 0.1°C | STABILITY: | ± 0.2°C |
| UNIFORMITY | ± 0.3°C | UNIFORMITY: | ± 0.1°C |
| RECOVERY RATE: | 1.5% PER MINUTE | ||
| CONNECTION: | 6mm TUBING | ||
| RELATIVE HUMIDITY | GAS PRESSURE: | 0.35BAR (5PSI) | |
| TRAY CAPACITY: | 0.3 LITRES | ||
| HUMIDITY: | UP TO 95% @ 37°C | ||
| DIMENSIONS | |||
| CHAMBER: | 238(W) X 201(D) X 298(H)mm | ||
| SHELVES | EXTERNAL: | 336(W) X322(D) X 481(H)mm | |
| SOLID SHELVES: | 2 SHELVES | CRATED: | 461(W) X 497(D) X 716(H)mm |
| DIMENSIONS: | 215(W) X 192(D)mm | ||
| UNIT WEIGHT: | 22KG | ||
| CRATED WEIGHT: | 38KG | ||
| ELECTRICAL SUPPLY | |||
| VOLTAGE: | 100/120V OR 220/240V | ||
| 50/60 Hz | |||
| POWER: | 700W | ||
| HOLD ENERGY: | < 0.1kWh @ 37°C | ||
