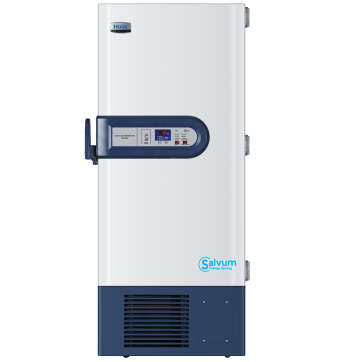

-86°C ULT Freezer DW-86L578J
Most Energy Efficient
World leading power consumption only 8.5 Kwh/day
Low Noise
Innovative refrigeration cabin design reduces operational noise
Reliable Performance Cabinet temperature can reach -86℃ with temp uniformity within 5℃
Technical Data
| Type | -86℃ ULT Freeer |
|---|---|
| Cabinet Type | Upright |
| Climate Class | N |
| Cooling Type | Direct cooling |
| Defrost Mode | Manual |
| Refrigerant | HC |
| Noise Lever (dB) | 50 |
Performance
| Cooling performance(℃) | -86 |
|---|---|
| Temperature Range(℃) | -40~-86 |
Control
| Controller | Microprocessor |
|---|---|
| Display | LED |
Electrical Data
| Power Supply(V/Hz) | 220-240/50 |
|---|---|
| Power(W) | 900 |
| Electrical Current(A) | 9 |
Dimensions
| Capacity(L/Cu.Ft) | 578/20.4 |
|---|---|
| Net/Gross Weight(approx) | 300/330(kg) 661.4/727.5(lbs) |
| Interior Dimensions(W*D*H) | 620*716*1310(mm) 24.4*28.2*51.6(in) |
| Exterior Dimensions(W*D*H) | 895*980*1960(mm) 35.4*38.6*78.0(in) |
| Packing Dimensions(W*D*H) | 950*1055*2125(mm) 37.4*41.5*83.7(in) |
| Container load (20’/40’/40’H) | 12/24/24 |
Functions
| High/Low Temperature | Y |
|---|---|
| Remote Alarm | Y |
| Hot Condenser | Y |
| Power Failure | Y |
| High/Low Voltage | N/A |
| Sensor Error | Y |
| Low Battery | Y |
| High Ambient Temp | Y |
| Door Ajar | Y |
Accessories
| Caster | Y |
|---|---|
| Foot | Y |
| Test Hole | Y |
| Shelves/Inner Doors | 3/4 |
| Temperature Recorder | Optional |
| USB Interface | Y |
| Rs232/485 Interface | Optional |
| CO2 Backup System | Optional |
| LN2 Backup System | Optional |
| Racks And Boxes | Optional |
