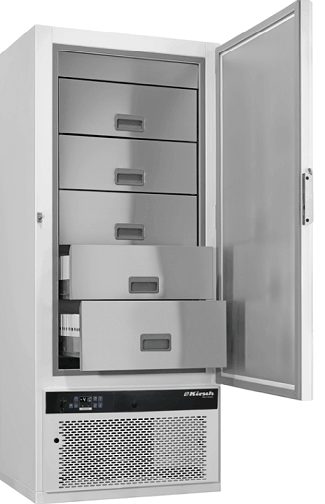

Blood Plasma Freezer FROSTER BL 650
The Blood Plasma Freezer FROSTER BL 650 is part of the KIRSCH Blood Plasma Freezers range. With 5 height adjustable aluminium drawers, this energy saving freezer comes with extra-thick 70-mm insulation, made from high-quality, compression-moulded and environmentally friendly material. The Blood Plasma Freezer FROSTER BL 530 has a self-closing door with easy-to-replace plastic magnet There is a PC-Kit available for temperature evaluation, monitoring and documentation. Monitoring can also be done with the KIRSCH-DATANET Software-package.
Features:
- 5 stainless steel drawers
- Comfort controller
- Micro-processor controlled temperature and thawing
regulation to maximize temperature stability - Battery for power failure alarm
- Heated door frame
- Re-circulation air-cooling
- Optimized ventilation plates to minimize interior temperature differences
- Rapid defrosting
- Melt water evaporation
- Easy accessible control panel with key switch
- Easy-to-read LED temperature display
- Optical and acoustical warning including power failure alarm
- Minimum/maximum temperature memory
- RS485 interface for computer based temperature documentation
- Potential free contact for alarm transmission.
Technical Specifications:
| Capacity | 650 l |
| Temperature setting | -41°C |
| Voltage | 220 – 240 V |
| Frequency | 50 Hz |
| Power consumtion | 960 Watts |
| Normal consumtion | 11,1 KW / 24 h |
| Overall dimensions incl. distance from wall | 83 x 102 x 197 (w x d x h in cm) |
| Interior dimensions | 62 x 76 x 131 (w x d x h in cm) |
| Usable dimensions | 59 x 65 x 118 (w x d x h in cm) |
| Overall dimensions with door open at 90° | 86 x 177 (w x d in cm) |
| Drawer inner dimensions, upper drawer | 59 x 56 x 22 (w x d x h in cm) |
| Drawer inner dimensions, 4 drawers below | 59 x 62 x 22 (w x d x h in cm) |
| Loading capacity per drawer | 50 kg |
| Weight | 220 kg / 260 kg (net / gross) |
Optional Equipment
- Castors
- Drawer insert/dividers for stainless steel drawer
- GSM-Module
- PC-KIT-NET (Network capable version), PC-KIT-STICK or
PC-KIT-USB-MONITORING incl. documentation software - Disc-type pen recording thermometer with 7-day measuring cycle with 100 recording discs and 5 felt tip pens
- Tem perature probe PT 100 or PT 1000, 4 wire sensor, class 1/3 B, incl. measuring flask incorporated
