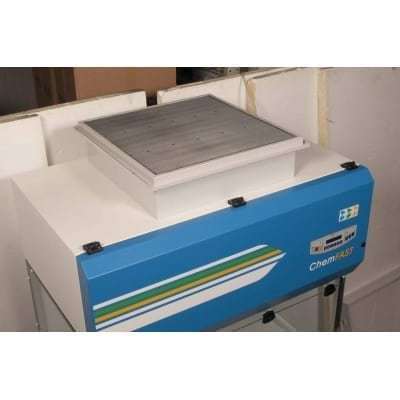

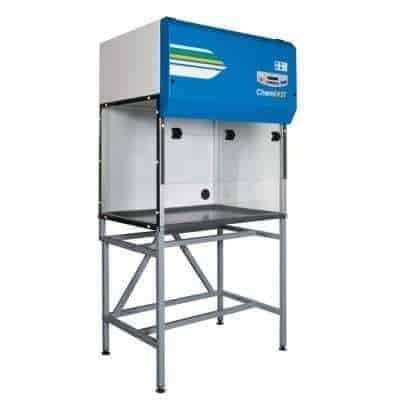

ChemFAST Top 18 (with work surface made of AISI 316L stainless steel)
Technical sheet
Useful dimension (mm):: WxDxH: 1738x600x660
Overall dimension [mm]: WxDxH: 1800x760x1120
Noise level (dbA):Working Aperture (mm): 200
Exhaust flow rate (m3/h): 800
Lighting level (lux): >1000
Weight (kg): 130
Electrical data [230V – 50H] (**): 230 V – 50 Hz
(**) different voltage/frequency available upon request:
Accessories
FX0000844010 – A/C Filter for ChemFAST 09 Top/Elite
FX0000844020 – SULF Filter for ChemFAST 09 Top/Elite
FX0000844030 – UR Filter for ChemFAST 09 Top/Elite
FX0000844040 – AM Filter for ChemFAST 09 Top/Elite
FX0000844050 – CYAN Filter for ChemFAST 09 Top/Elite
FX0000844060 – MER Filter for ChemFAST 09 Top/Elite
FX0000844070 – ACR Filter for ChemFAST 09 Top/Elite
FX0000844080 – FOR Filter for ChemFAST 09 Top/Elite
FX0000844090 – HEPA filter for ChemFAST 09 Top/Elite
FX0000844000 – Prefilter for ChemFAST 09 (10 pcs.)
FX0000874500 – Supporting table for ChemFAST 18
FX0000874510 – Mobile trolley for ChemFAST 18
FX0000874520 – Mobile trolley for ChemFAST 18 complete with work surface and sink of AISI-304, mixing tap and drainpipe, side closure of the table and two front doors, epoxy powder painted
FX0000854700 – Gas Tap with electrovalve
FX0000204710 – Manual Gas Tap
FX0011247100 – Manual Vacuum Tap
FX0011247200 – Manual Compressed air Tap
FX0011247300 – Manual Nitrogen Tap
FX0000854740 – Manual Water tap for ChemFAST
FX0000854910 – Electric socket for ChemFAST
FX0000854950 – Filter saturation monitoring system for ChemFAST version 06-09-12-15 Top
FX0000844400 – External case (without filter) for additional A/C filter on the exhaust for ChemFAST 09/12 without spigot
FX0000844410 – External case (without filter) for additional A/C filter on the exhaust for ChemFAST 09/12 with spigot
FX0000844420 – External case (without filter) for additional HEPA filter on the exhaust for ChemFAST 09/12 without spigot
FX0000844430 – External case (without filter) for additional HEPA filter on the exhaust for ChemFAST 09/12 with spigot
FX0000854800 – Additional A/C safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854810 – Additional UR safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854820 – Additional CYAN safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854830 – Additional ACR safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854840 – Additional SULF safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854850 – Additional AM safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854860 – Additional MER safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854870 – Additional FOR safety filter for the exhaust of ChemFAST 09-12 Top/Elite
FX0000854880 – Additional HEPA safety filter for the exhaust of ChemFAST 09-12 Top/Elite
