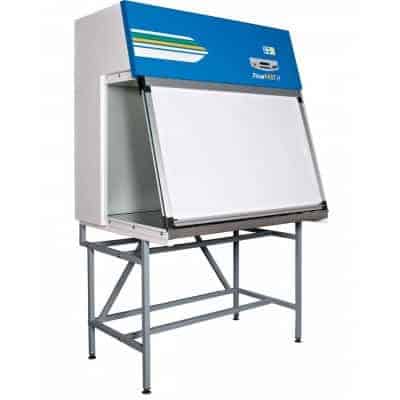

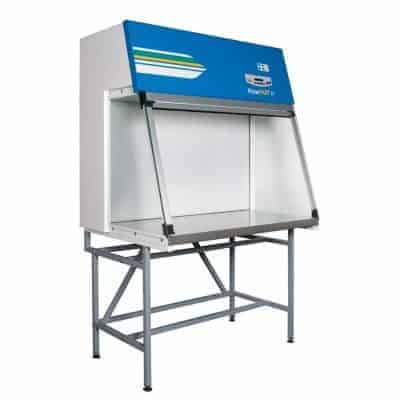

FlowFAST H
Applications
FlowFAST H have been widely adopted in many sectors of industry and in science laboratories for use when handling no-risk cell cultures or non-pathogenic biological specimens when the aim is to provide a high degree of protection factor to the samples and the products on the worktop.
FlowFAST H have applications in a wide range of disciplines such as: sterility test, microbiology, In Vitro Fertilization, preparation of ophthalmic solutions, preparation of culture media, assembly of electronic devices, nutritional parenteral therapy, assembly of medical devices, PCR.
Operational Principles
The environment air is drawn from the top through the upper part of the cabinet via a G3 pre-filter and it then passes after filtration by virtue of H14 HEPA/ULPA filter into the working area in positive pressure creating an horizontal laminar air flow pattern and exhausted outside.
Specifications
External structure in epoxy powder coated cold-rolled steel for excellent corrosion resistance to the attack by aggressive common chemicals. Alternatively special models with external structure made in AISI 304L stainless steel for superior cleanability are also available on demand.
Work surface in stainless steel AISI 304L fixed in one piece.
Filtration:H14 HEPA/ULPA filter with an efficiency better than 99,995 % MPPS (EN-1822).
Prefiltration: Inlet G3 pre-filter efficiency 80≤AM≤90 according to EN 779 and UNI 10339
Operation Condition: Air cleanliness in Class ISO 3 as per ISO:EN 14644-1.
Motor blower: direct coupled motor, electronic speed controlled to maintain a constant laminar air flow of 0.45 m/sec, and compensate for a partially clogged filter up to a maximum plenum pressure of 40 mm of water.
Servicing side glass with ports for service taps installation.
The user-friendly practical keyboard and the rear-lit LCD (optional) will continuously display all required data keeping the user constantly informed of the cabinet conditions in operation, and in particular:
- display of laminar airflow velocity
- display of inside and outside temperature
- display of residual lifetime of HEPA/ULPA filter, UV Lamp.
- display of total number of hours of operation
- display of saturation level of HEPA/ULPA filter
Audio-visual alarms (optional) provided for:
- out of range or incorrect laminar airflow velocity
- front window opened
- clogging of HEPA/ULPA filter
- end of life-cycle of UV lamp
- fan-motor malfunction
- power failure
Lighting: fluorescent tubes in built-in housing, placed outside the sterile area.
D.O.P.-DEHS inlet port for testing the HEPA/ULPA filters
UV sterilizing lamp (optional) complete with a flexible front shutter in order to close the working area from dust and for the safety of operators.
Products in FlowFAST H range
| SKU | Name | description |
|---|---|---|
| F00000190000 | FlowFAST H 09 | Width [cm]: 90 Pressure: Positive Motor-blowers: Single fan |
| F00000200000 | FlowFAST H 12 | Width [cm]: 120 Pressure: Positive Motor-blowers: Single fan |
| F00000210000 | FlowFAST H 15 | Width [cm]: 150 Pressure: Positive Motor-blowers: Single fan |
| F00000220000 | FlowFAST H 18 | Width [cm]: 180 Pressure: Positive Motor-blowers: Single fan |
