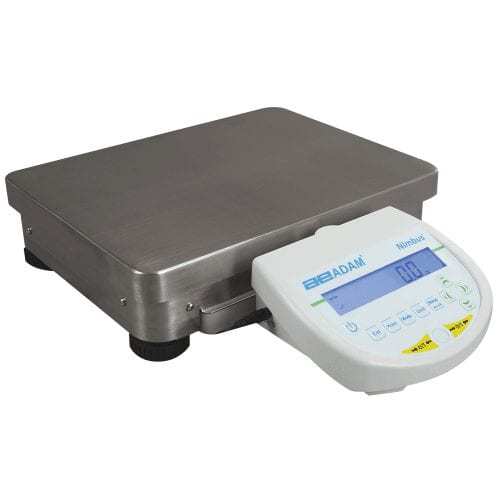

Nimbus Precision Balance, Capacity 12000g, Readability 0.1g, Pan 300 x 400mm, External Calibration
Durable and reliable, Nimbus precision balances deliver a full breadth of readabilities ranging from 1mg to 0.1g. Innovative design enables a compact footprint, so it occupies minimal space but retains a high level of performance. The single-piece construction offers greater stability, producing highly repeatable results. The weighing sensor in the Nimbus is crafted from a single block, and contains fewer parts than a traditional force motor balance. This optimised internal mechanism is fabricated using hardened materials, helping the Nimbus tolerate rigorous laboratory use. Efficiency in the mechanics, plus improved processing power of the electronics, leads to excellent performance.
- Backlit display
- Below balance weighing
- Date
- External calibration
- GLP/ISO Print Reports
- RS-232
- Security lock down
- Tare Function
- Time
- USB
Hardware
- Colour-coded keys facilitate quick recognition of the most frequently used buttons
- Level indicator and adjustable feet ensure proper balance setup for optimum weighing results
- Removable draught shield on models with 0.001g readability helps to reduce errors caused by air currents
- Robust metal housing protects internal components in harsh environments
- Sealed keypad protects against dirt and spills
- USB and RS-232 interfaces provide speedy communication with computers and printers
- Large, grade 304 stainless steel pan allows easy cleaning
- Vivid, backlit LCD easily visible in any lighting conditions
- Lockdown device to secure balance
Software
- External calibration allows for verification and adjustment with weights
- Printouts include date and time for data tracking within Good Laboratory Practices (GLP) guidelines
- Selectable digital filtering helps minimise effects of vibration and disturbances
- Zero-tracking feature ensures display returns to zero reading
- Multilingual display allows use in many different countries
Display
- Vivid, backlit LCD easily visible in any lighting conditions
Power
- AC adapter included
- Capacity
- 12000g
- Readability
- 0.1g
- Repeatability
- 0.2g
- Weighing Units
- g, kg, ct, GN, N, lb, oz, lb:oz, ozt, dwt, T, custom unit
- Calibration
- External calibration
- Stabilization Time
- 3.0
- Pan Size
- 400x300mm
- Linearity
- 0.4g
- Power Supply
- 18VDC 50/60Hz 830mA adapter
- Construction
- Extruded aluminum base with a die-cast aluminum case
- Interface
- RS-232, USB
- Operating Temperature
- 15° to 35°C
- Net Weight
- 7.6kg
- Overall Dimensions
- 450x515x195mm (wxdxh)
- Electrical Safety Mark
- CE, cUL
- Approvals
- N/A
- Display Digit Height
- 20mm
