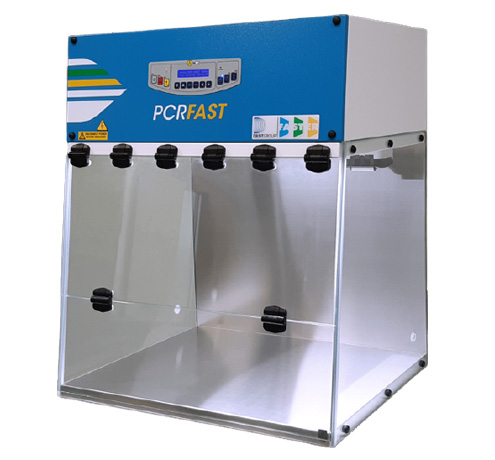

PCRFAST
Faster PCRFAST is an economical general purpose Polymerase Chain reaction (PCR) UV cabinet suitable for PCR set-up.
The PCRFAST includes LED UV lamps which last longer than conventional UV bulbs. LED UV also hits micro-organisms at the ideal frequency of 275nm versus traditional 254nm. Giving more efficient sterilisation. PCRFAST’s UV light is interlocked with the front cover preventing accidental exposure. The UV light will not activate if the front is opening.
Back wall and worksurface are constructed from AISI 304 L stainless steel with SB finish for excellent cleanability. The front window and side panels are constructed of 6mm anti-UV safety glass.
As standard PCRFAST includes LED white light for exceptional visibility while working, LED UV for sterilisation, and an internal IP66-rated electrical socket.
Benefits
- PCRFAST is specifically designed to perform sensitive (PCR) amplification and manipulation of DNA or RNA. It is adopted in a wide range of disciplines such as microbiology, haematology, cell culture and genetics.
- This cabinet ensures a complete sterile work area thanks to the presence of UV light that is needed for irradiation and decontamination of DNA and RNA samples.
- The cabinet is a benchtop type.
- A safety switch is in place to turn off UV when the front glass is opened.
- White LED light proves perfect visibility during daily working.
Technical Specifications
| Description | Unit | PCR FAST |
| Overall dimensions (WxDxH) | mm | 712 x 620 x 860 |
| Useful dimensions (WxDxH) | mm | 700 x 600 x 550 |
| Working aperture | mm | 200 |
| Maximum front aperture | mm | 500 |
| Weight | kg | 55 |
| UV light radiant flow | mW | 170 |
| UV light average lifetime | Hours | 8 |
| UV light timesetting | Hours | 4 (+/- 1 min accuracy) |
| UV light peak wavelength | nm | 275 |
| Noise level (1) | db(A) | <54 |
| LED Lighting level | lux | >2100 |
| Electrical data | 1Ph+E – 230V 50Hz | |
| Energy consumption (2) | kW | 0,11 kW |
| Internal electrical outlet | The electrical outlets have a total load capacity of 4A | |
(1) Equipped with Kit HEPA filter.
(2) Clean filters, lighting activated, internal outlet load excluded.
Accesories
- HEPA Filter + motorblower KIT
- Support stand
- Additional electrical socket
