Overview

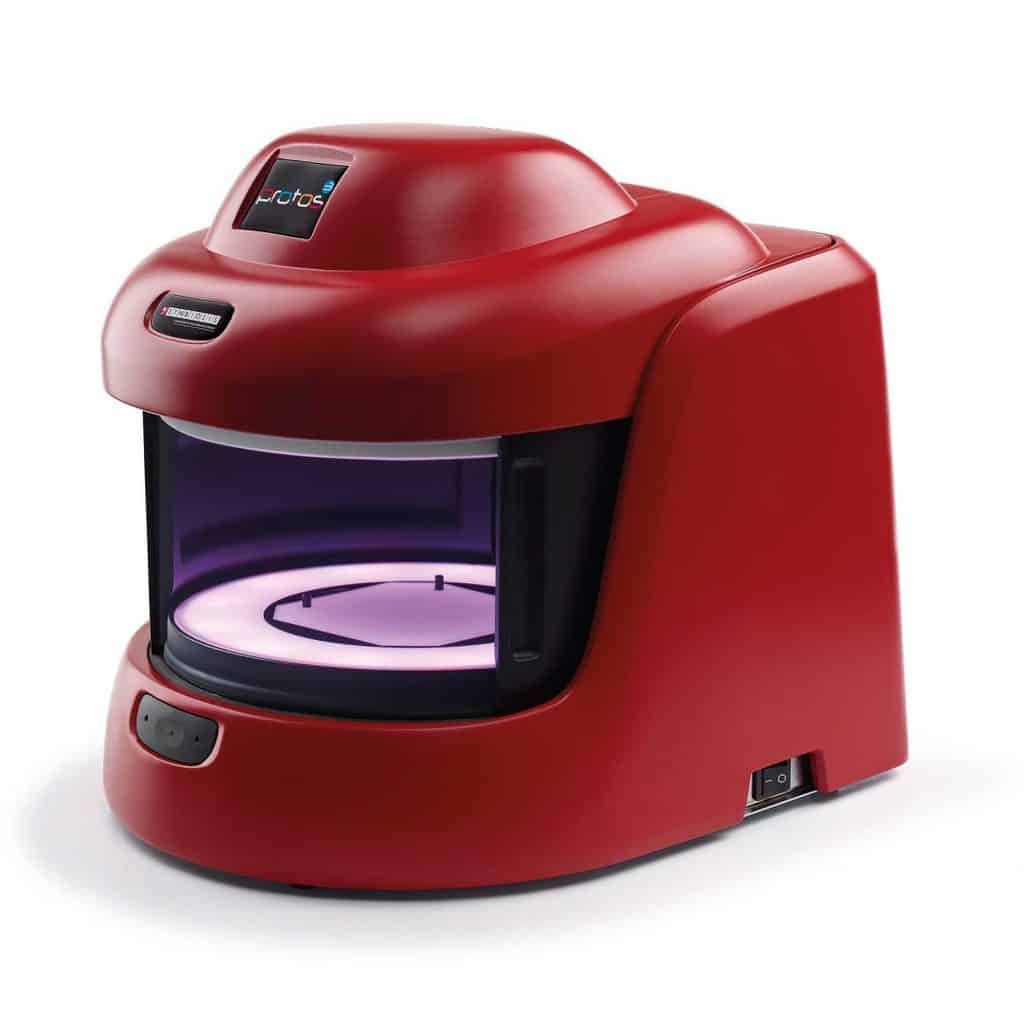

Protos 3 is a revolutionary automated colony counter and chromogenic identification system. Using its sensitive CCD camera and unique lighting coupled with powerful analysis software, Protos 3 counts colonies in seconds and automatically identifies microbial species by their colour on chromogenic plates. This provides accurate, objective and fully traceable results.
The compact Protos 3 attaches via USB to a computer, where microbiologists can input their plate identification and with the one-click colony counting and chromogenic ID software can rapidly analyse a wide range of plate types. The count results can be automatically transferred to Excel where the count, plate ID and images can be saved. This GLP compliant process, with its full audit trail eliminates transcription errors to provide accurate, objective data, which can be reviewed at any time and used to produce professional reports.
Protos 3 can be used with both small and large plates (up to 150mm) to read a range of format types including spiral, pour, spread and dilution series plates. The system’s camera is so sensitive it can routinely detect colonies as small as 43 microns and the unique LED lighting system and Protos 3 software allows analysis of an infinite number of colonies on one plate in seconds, making this an ideal system for use in busy food and environmental microbiology laboratories.
Fully traceable results
- Can input plate identification using barcodes
- Automatic capability to transfer and print results and images
- Saves counts to Excel to eliminate keying errors
- Saves images in TIFF, Excel and report formats
- Archives results in accessible SQL database
Increases throughput
- Accurately detects colonies as small as 0.043 mm
- Precisely counts an infinite number of individual colonies in seconds
- Analyses 75 plates in 5 minutes
Excellent detection performance
- True colour recognition using unique 3 colour lighting
- Identifies multiple different colony colours on one plate
- Analyses all plate colours with a choice of light and dark backgrounds
- Classifies by size, colour and shape
- Objectively identifies species by colour on CHROMagar™
Reproducible results
- Provides objective colour results
- Eliminates keying errors with direct results transfer
- Automatically identifies species on chromogenic plates
Simple to use
- Intuitive software
- Corrects for agar defects, touching colonies or sample debris
- Marks colonies with symbols to show each counted
- Easy to exclude areas from a count
- Adjustable counting area
Applications
- Pour plates
- Spiral plates
- Gridded plates
- Streak plates
- Species identification
- Large plates (up to 150mm)
- Dilution series plates
