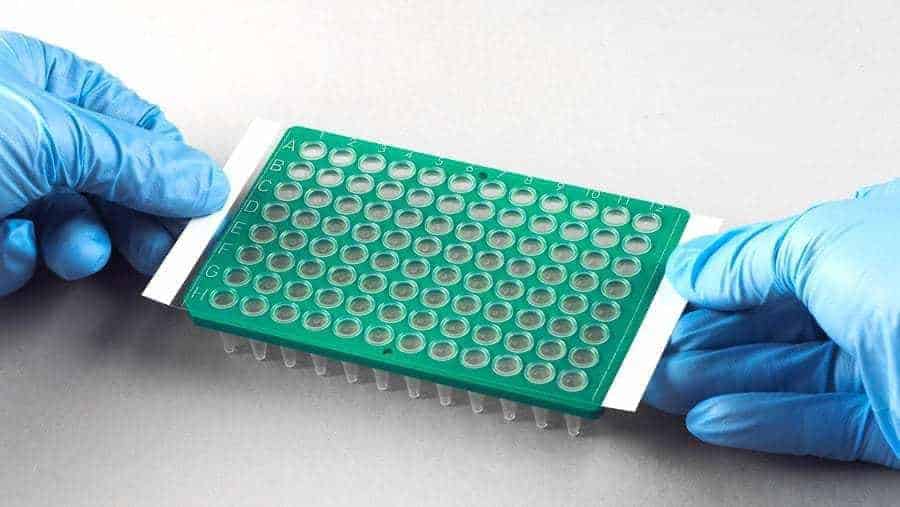

Optically clear adhesive film, pressure activated adhesive, peelable; suitable for qPCR and other imaging techniques including crystallisation
This optically clear seal was specifically developed for optical applications, particularly qPCR. It is non sticky when removed from the packaging; this aids handling when wearing gloves. The adhesive is contained within small capsules, allowing light to pass through to ensure the optical clarity of the seal. When the seal is in position, pressure can be applied to burst the capsules, releasing a strong adhesive only where the seal touches the raised well rims of the plate – the rest of the seal area above the wells remains optically clear.
The qPCR Seal is also available in half plate size format to be used with our FrameStar® 192 Well Semi-Skirted PCR Plate.
IMPORTANT – Technical Note
This is a pressure-activated seal. The adhesive is released when pressure is applied firmly and evenly to the seal. Our Adhesive Seal Roller and Adhesive Seal Applicator are ideal for use with this product. We also recommend the use of our Optical Film Compression Pad during PCR with this product.
- Non-pierceable
- Peelable
- Seal integrity range: -80 °C to 110 °C
- Free from DNase, RNase, and human genomic DNA
- Non-sterile as standard; can be sterilised upon request
- Applications: qPCR and other fluorescent applications, plate readers, microscopy and protein crystallisation (96 or 384 well)
- Sheet dimensions: 140 x 77 mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates with 96 round wells
- Half plate size sheets to be used with half 384 well plates (FrameStar® 192 Well Semi-Skirted PCR Plate) and other half size plate segments resulted from breaking or tearing any of our dividable plates range: 70 x 77 mm
- Roll dimensions: 100 m x 80 mm, approx. 700 seals
- Removal: will not leave a sticky residue on the plate surface following removal
- Replacement for: ABI® MicroAmp Optical Adhesive film, Absolute qPCR plate seals and Roche LightCycler® sealing foils
