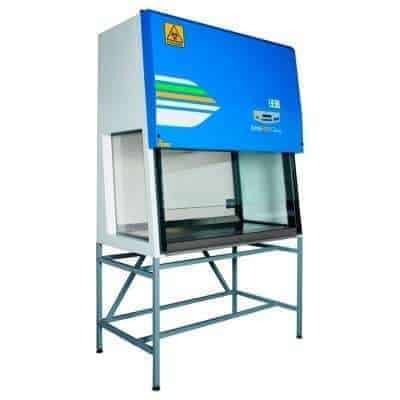

SafeFAST Classic 212
Technical sheet
Useful dimension (mm)::WxDxH: 1192x580x740
Overall dimension [mm]: WxDxH: 1350x855x1545 (*)
Noise level (dbA):Working Aperture (mm): 200
Exhaust flow rate (m3/h): 390
Lighting level (lux): >1200
Weight (kg): 195
Electrical data [230V – 50H] (**): 230 V – 50 Hz
Current consumption (A): 2,1
Heat emission (W): 240
(*) overall depth can be reduced to
(**) different voltage/frequency available upon request:
Accessories
FX0002124600 – UV Lamp for 0.9/1.2 mt size
FX0002124500 – Epoxy powder coated modular stand for 1.2 mt size
FX0002124510 – Epoxy powder coated modular stand for 1.2 mt size with castors
FX0002124900 – Additional electrical socket
FX0011247000 – Gas Tap with electrovalve
FX0000204710 – Manual Gas Tap
FX0011247100 – Manual Vacuum Tap
FX0011247200 – Manual Compressed air Tap
FX0011247300 – Manual Nitrogen Tap
FX0011247400 – Manual Water tap
FX0002124930 – Additional socket for data (RS232)
FX0002124920 – Additional socket for data (RS485)
FX0002124950 – Additional socket for data (RJ45)
FX0021250000 – Additional socket for data (USB)
FX0002124940 – Volt free contact
FX0002124070 – Exhaust thimble connection 1.2 mt size
FX0002124200 – Arm rests (couple)
FX0002124210 – Stainless steel bar for bags with 6 hooks for 1.2 mt size
FX0000064810 – 3-drawers unit on pivotting castors and removable epoxy powder coated vessels
FX0002124520 – Adjustable electrical stand (stroke 700-1000mm) for 1.2 mt size
