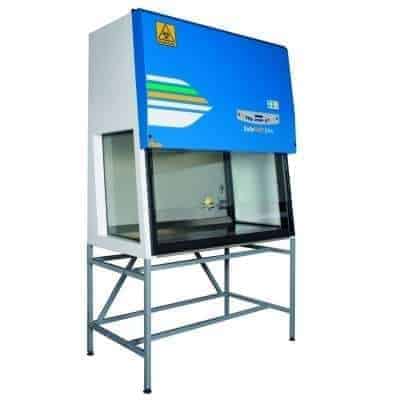

SafeFAST Elite 215 D
Technical sheet
Useful dimension (mm):: WxDxH: 1497x580x740
Overall dimension [mm]: WxDxH: 1655x855x1545 (*)
Noise level (dbA):Working Aperture (mm): 200
Exhaust flow rate (m3/h): 485
Lighting level (lux): >1300
Weight (kg): 225
Electrical data [230V – 50H] (**): 230 V – 50 Hz
Current consumption (A): 3,9
Heat emission (W): 295
(*) overall depth can be reduced to
(**) different voltage/frequency available upon request:
AccessoriesFX0002154600 – UV Lamp for 1.5/1.8 mt size
FX0002154500 – Epoxy powder coated modular stand for 1.5 mt size
FX0002154510 – Epoxy powder coated modular stand for 1.5 mt size with castors
FX0002124900 – Additional electrical socket
FX0002124710 – Additional Vacuum Tap
FX0021247200 – Additional Compressed Air Tap
FX0021247300 – Additional Nitrogen Tap
FX0021247400 – Additional Water Tap
FX0002124930 – Additional socket for data (RS232)
FX0002124920 – Additional socket for data (RS485)
FX0002124950 – Additional socket for data (RJ45)
FX0021250000 – Additional socket for data (USB)
FX0002154030 – Exhaust charcoal filter without collar for 1.5 mt size
FX0002154020 – Additional exhaust HEPA filter without collar for 1.5 mt size
FX0002124940 – Volt free contact
FX0002124800 – Anti-blowback valve
A00XBBB54 – Touch screen controls
FX0002154040 – Exhaust hard duct connection 1.5 mt size
FX0002154070 – Exhaust thimble connection 1.5 mt size
FX0002124200 – Arm rests (couple)
FX0002154210 – Stainless steel bar for bags with 6 hooks for 1.5 mt size
FX0021549600 – Inflatable Gasket for front sealing 1,5 mt size
FX0021249700 – Air compressor for inflatable gasket
FX0002154010 – Sealing kit for exhaust during fumigation 1.5 mt size
FX0002124340 – Kit to modify as powder weighing station with solid work surface
FX0002124350 – Kit to modify as powder weighing station with solid work surface
FX0000064810 – 3-drawers unit on pivotting castors and removable epoxy powder coated vessels
FX0002154520 – Adjustable electrical stand (stroke 700-1000mm) for 1.5 mt size
