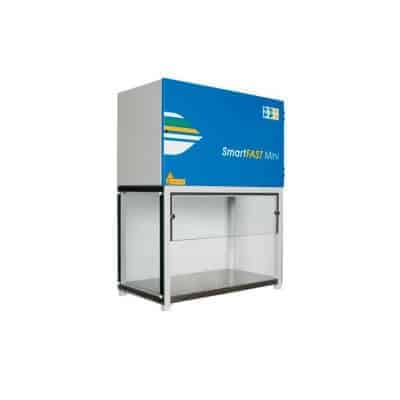

SmartFAST Mini
Applications
SmartFAST Mini have been widely adopted in many sectors of industry and in science laboratories for use when handling no-risk cell cultures or non-pathogenic biological specimens when the aim is to provide a high degree of protection factor to the samples and the products on the worktop.
SmartFAST Mini have applications in a wide range of disciplines and especially for: microbiology sterility tests, sterile manipulations, cell culture, PCR.
Operational Principles
The environment air is drawn from the top of the cabinet and then pulled downwards and filtered by virtue of H14 HEPA/ULPA filter into the working area in positive pressure creating vertical laminar air flow pattern.
The same volume of air is exhausted outside from the frontal aperture and under the work surface
Specifications
External structure in epoxy powder coated cold-rolled steel for excellent corrosion resistance to the attack by aggressive common chemicals.
Work surface in stainless steel AISI 304L fixed in one piece perforated and removable for autoclaving.
Prefiltration: Inlet G3 pre-filter efficiency 80≤AM≤90 according to EN 779 and UNI 10339
Filtration:H14 HEPA/ULPA filter with an efficiency better than 99,995 % MPPS (EN-1822).
Operation Condition: Air cleanliness in Class ISO 3 as per ISO:EN 14644-1.
Motor blower: direct coupled motor, electronic speed controlled to maintain a constant laminar air flow of 0.45 m/sec, and compensate for a partially clogged filter up to a maximum plenum pressure of 40 mm of water.
Products in SmartFAST Mini range
| SKU | Name | description |
|---|---|---|
| F00012200000 | SmartFAST Mini | Width [cm]: 60 Motor-blowers: Single fan Pressure: Positive |
