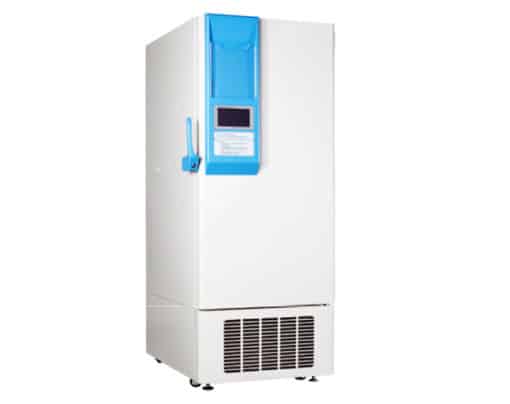

UCL-525-86 ULTRA LOW FREEZER 525L -86ºC
General Characteristics
- Temperature control range from -86ºC to -40ºC.
- Digital temperature control unit with digital display, placed at visible level on the front door, for easy reading, to control the system parameters.
- Control panel with tactile keyboard.
- Pt 100 temperature probe, accuracy of 0.1ºC on the display.
- Audible and visible independent alarms with battery backup: maximum and minimum temperature, also alarms for power failure.
- Alarms indications with battery backup: door open, battery empty, filter saturation; also for system failures, current voltage level and room temperature.
- Numerical code protection on the control system.
- Printer for temperature recorded every 20 min and 7 days memory.
- Display for ambient room temperature.
- Display of the current voltage level.
- Alarm record of the 10 last incidents, with indication of date, time, cause of alarm and the time of failure.
- Main power switch key protected.
- Solid door with easy opening device and independent lock with keys.
- Isolation of 155 mm of high density injected polyurethane CFC and HCFC free, for CVF 380/86 and CVF 220/86 models, for CVF 525/86 and CVF 800/86 models: 110 mm Vacuum Formed High Density Polyurethane (VIP), CFC and HCFC free.
- Cooling gases, CFC and HCFC free, biodegradable.
- Surrounding evaporator system.
- Hermetic compressors built on cascade serial construction, low noise, mounted over dampers in order to avoid the sound level <48dB.
- Air filter placed on the front, easy to take out and clean.
- Double heated perimeter gasket on the door, to ensure ice free and a perfect airtight closing.
- Heated pressure compensation valve, allow easy opening of the door by frequent door openings.
- Internal chamber of stainless steel.
- Free height regulated stainless steel shelves.
- Individual inner service doors, allow the access to each shelve, to avoid cool losing in case of frequent door openings.
- External chamber made it of carbon steel, epoxy coated.
- Base with 4 wheels, for easy movement.
- Tropical treatment, to allow work until 38ºC working area temperature, with 85-90% R.H.
- Port holes.
- Consumption: 1100W
- Internal dimensions: 585x696x1266mm.
- External dimensions: 930x1041x1947mm.
- Capacity: 525 liters
- 220v/50Hz
Options
- Temperature circular recorder 7 days, main powered with independent battery back-up (replacing the printer).
- Remote control interface connections RS 485/232.
- Potential free output for remote alarm control.
- Alarm system GSM modem (sending SMS).
- CO2 / LN2 back-up, security system.
- Data loggers.
- 110v/60Hz or 220v/60Hz.
- Storage racking systems.
- Number of racks made of stainless steel: 16
- Nº of box of high 50mm Rack 5×4: 320
- Nº of box of high 75mm Rack 3×4: 192
- Nº of box of high 100mm Rack 2×4: 128
