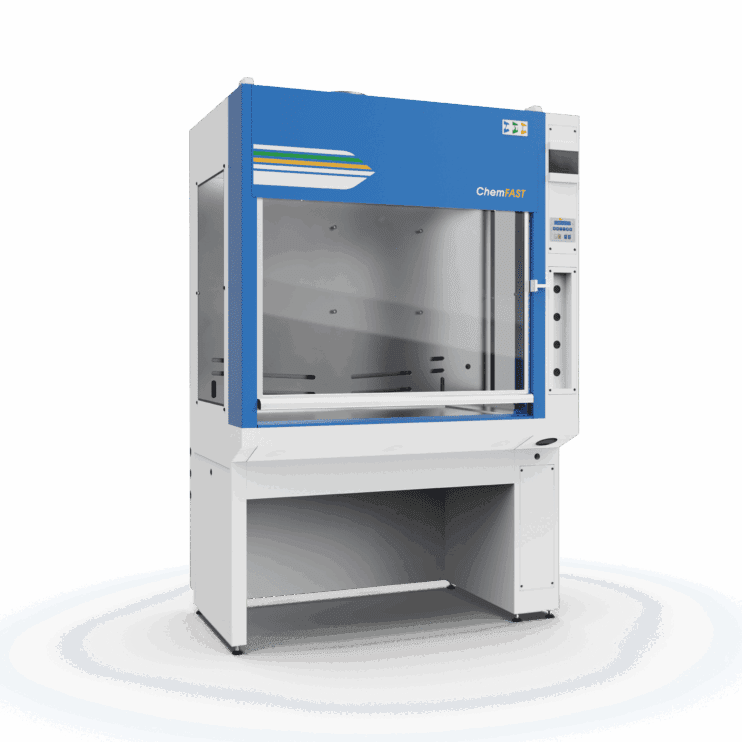

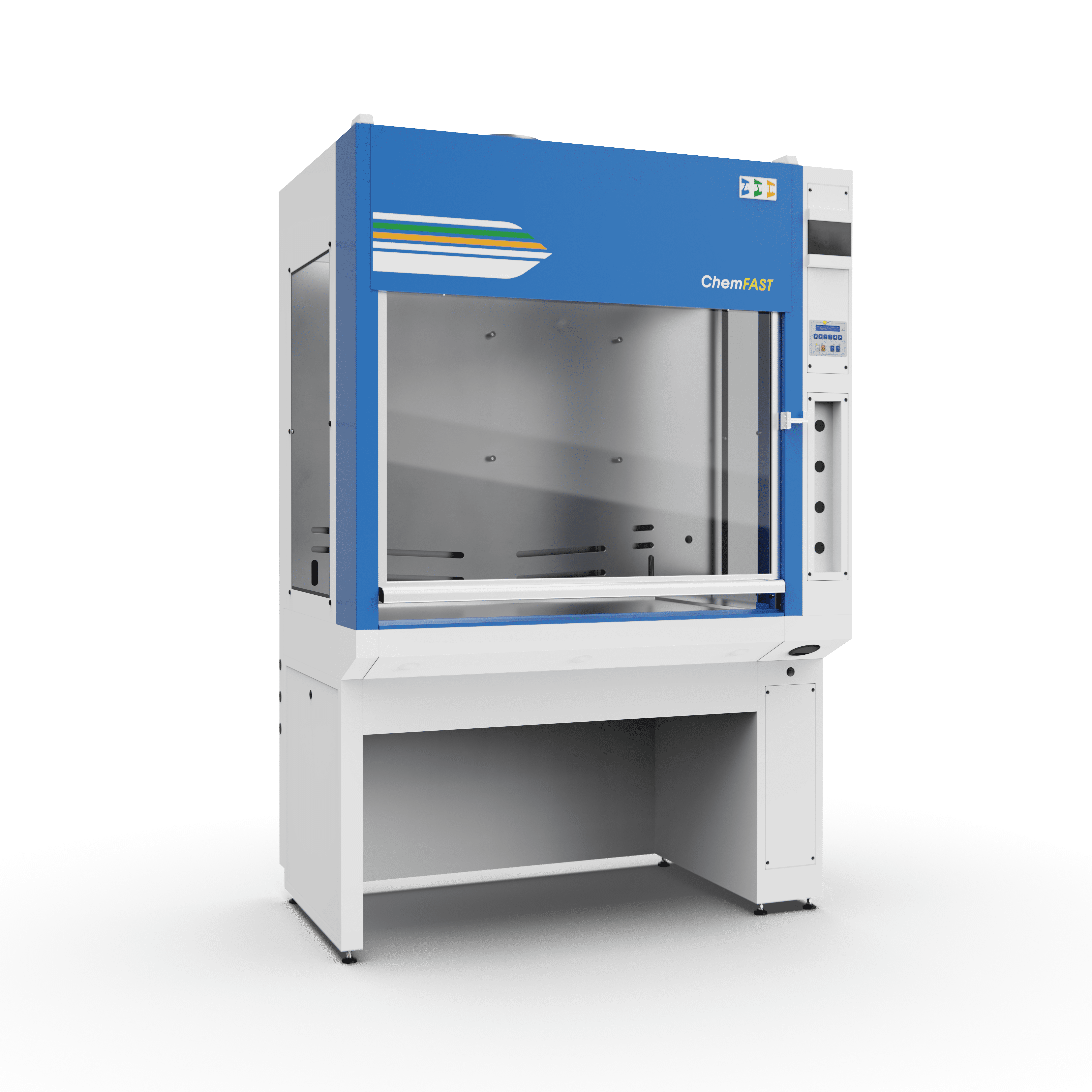

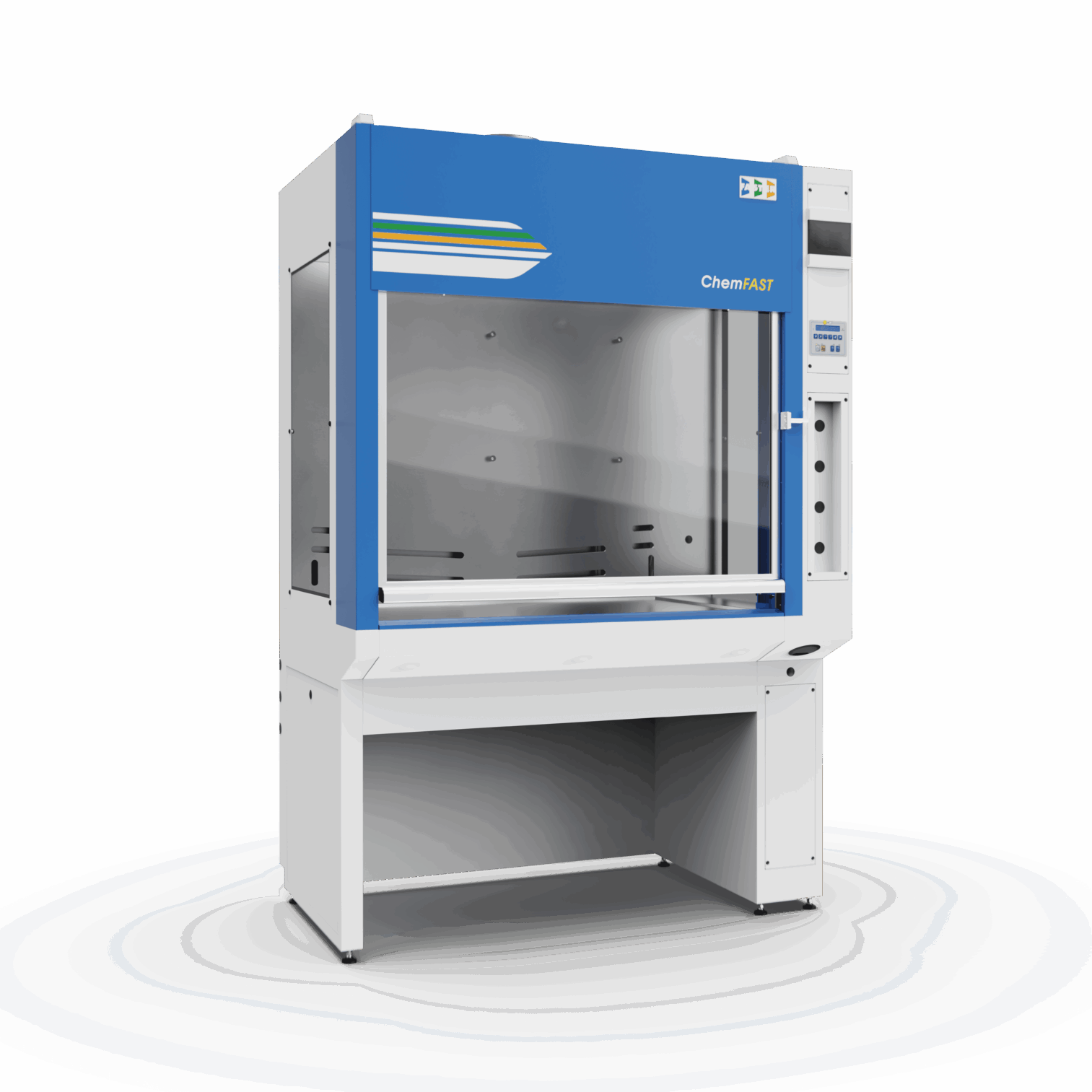

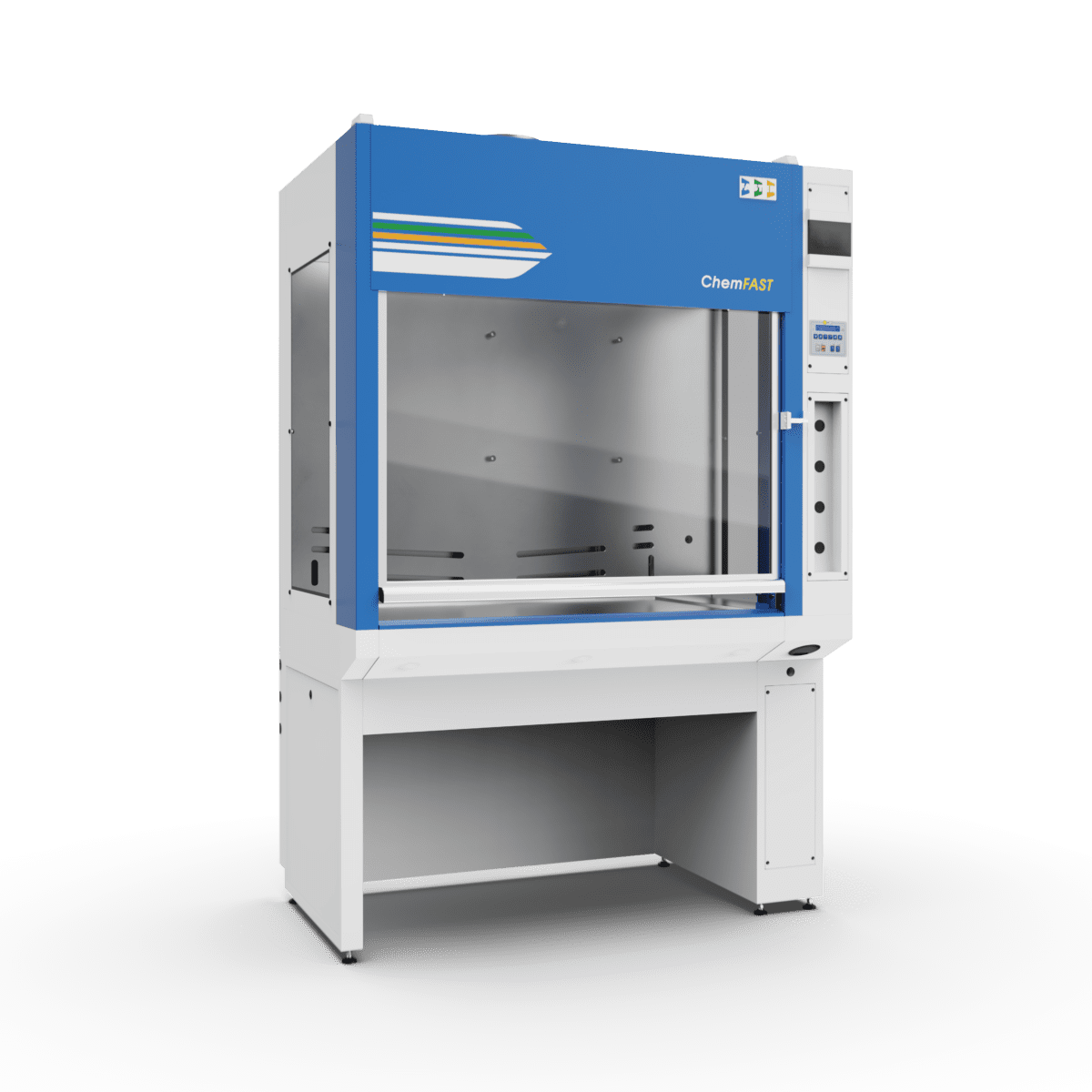

ChemFAST Sharp – Total Exhaust Fume Hood (VAV)

Overview

Variable Air Volume chemical fume hood with automatic airflow regulation. Designed for modern laboratories that prioritise energy efficiency, precise containment and flexible performance across a wide range of chemical applications.



Product Details

Key Features

  • Variable Air Volume (VAV) system regulates air extraction based on sash opening
  • Compliance with EN14175 parts 3–6 and Machinery Directive 2006/42/CE, tested by ILAC-MRA lab
  • Optimised energy use and reduced CO₂ emissions via ECS microprocessor control with pressure compensation
  • Precise airflow measurement using built-in vane anemometer
  • Silent operation thanks to smart design of plenum, structure and software
  • Ergonomic design with ample under-hood workspace that supports seated work and safety storage
  • Durable semi-gloss epoxy coating (RAL9010 body, RAL5015 front) with high heat and impact resistance
  • Integrated IP66-rated electrical sockets (up to 8; 4 internal, 4 external) and optional service utilities
  • Antibacterial surface coating (DuPont™ ALESTA®) to reduce contamination
  • Optional under-hood storage, vented or wheeled safety cabinets

Work Surface & Coatings

  • Standard ceramic worktop with high chemical and temperature resistance
  • Optional ceramic internal coating for high-temperature acid handling
  • Optional polypropylene work surface and lining for hydrofluoric acid compatibility



Suitable for laboratories in analytical chemistry, pharmaceutical, biotech, clinical diagnostics, QC, medical research, petrochemical, food, cosmetics, fine chemicals, electronics industries

Compliance

  • EN14175 parts 3–6
  • Machinery Directive 2006/42/CE
  • Tested by ILAC-MRA accredited laboratories



Variants / Sizes

Model (Sharp) Overall Dimensions (W×D×H mm) Usable Dimensions (W×D×H mm) Weight (kg) Exhaust (Open/Closed m³/h) Power (W)
12 1200×962×2353 1185×750×1200 240 815 / 50 150
15 1500×962×2353 1485×750×1200 275 1085 / 65 150
18 1800×962×2353 1785×750×1200 310 1355 / 80 200
21 2100×962×2353 2085×750×1200 340 1625 / 97 200
24 2400×962×2353 2385×750×1200 370 1895 / 115 350

Specifications notes

  • Working opening: 500mm; Front max opening: 600–730mm; Inflow speed range: 0.3–0.7m/s
  • Electrical connection: 230V 50Hz; Protection class: IP66; Lighting: LED >800lux

Options & Accessories

  • Alternative work surfaces (polypropylene, Trespa)
  • Optional filters (charcoal, HEPA; available for retrofit downstream of ducting)
  • Optional utilities: gas, cold water, RJ45, additional sockets/controls (PLC/HMI)
  • Compatibility with remote filtered blower systems
  • Optional safety fittings for gas/vacuum lines



Customisation

Available for bespoke laboratory needs, including coatings, worktop materials, specialised cabinets and custom dimensions or utilities (not fully detailed in source – further confirmation needed)



  • PCRFAST 02

    Fume Hoods

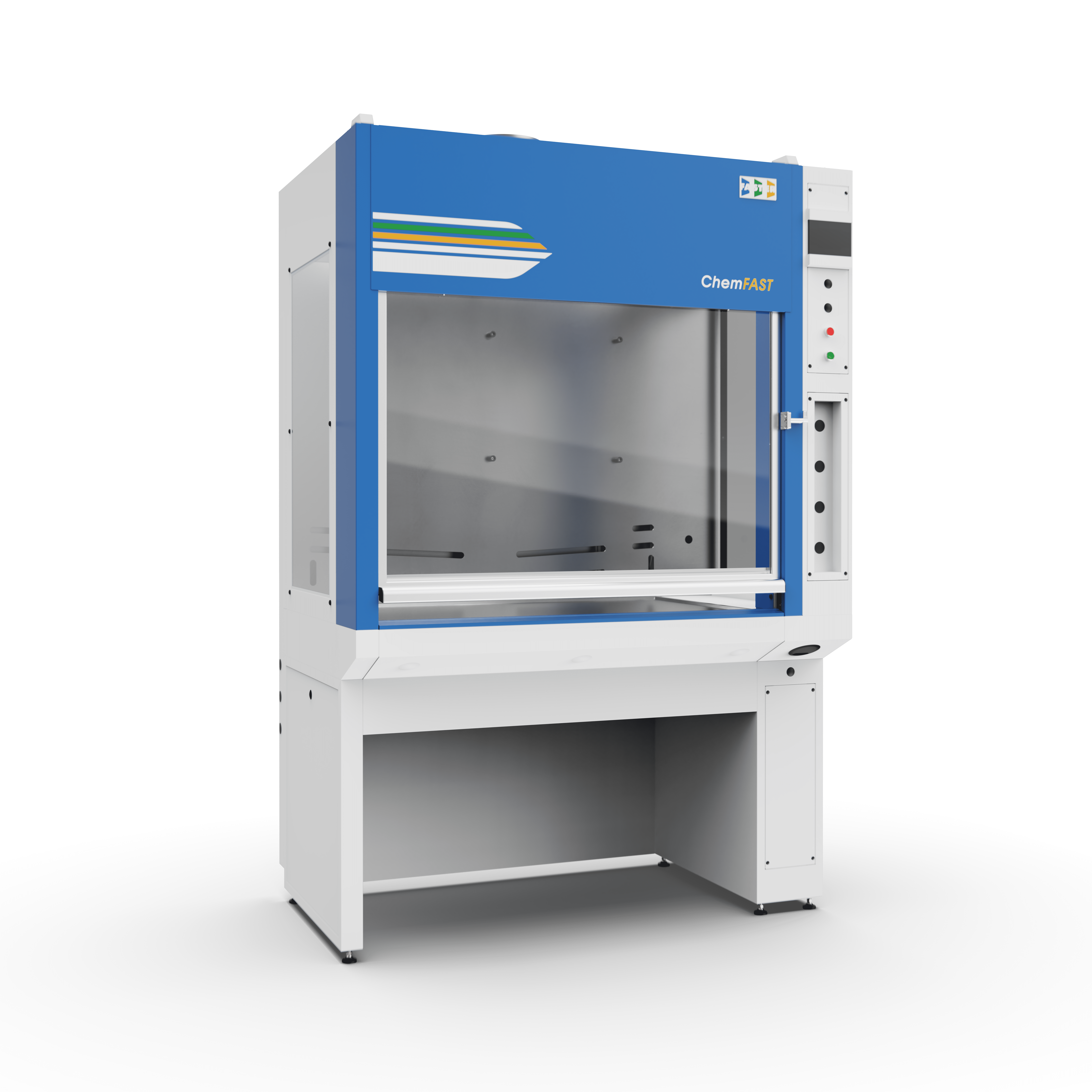

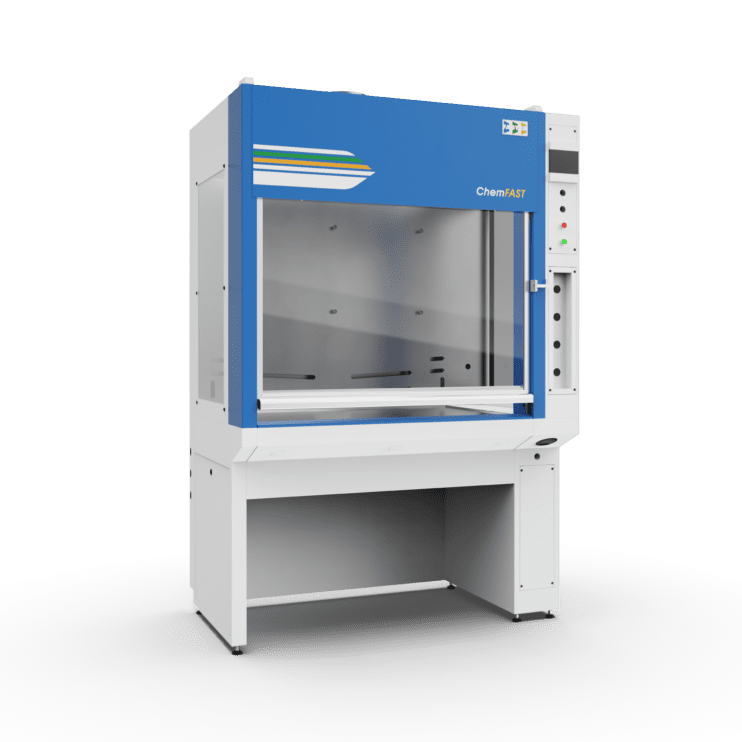

    ChemFAST Classic – Total Exhaust Fume Hood (CAV)

  • ChemFAST ELITE

    Fume Hoods

    ChemFAST Elite – Ductless/Recirculating Fume Hood

  • ChemFAST Premium 01

    Fume Hoods

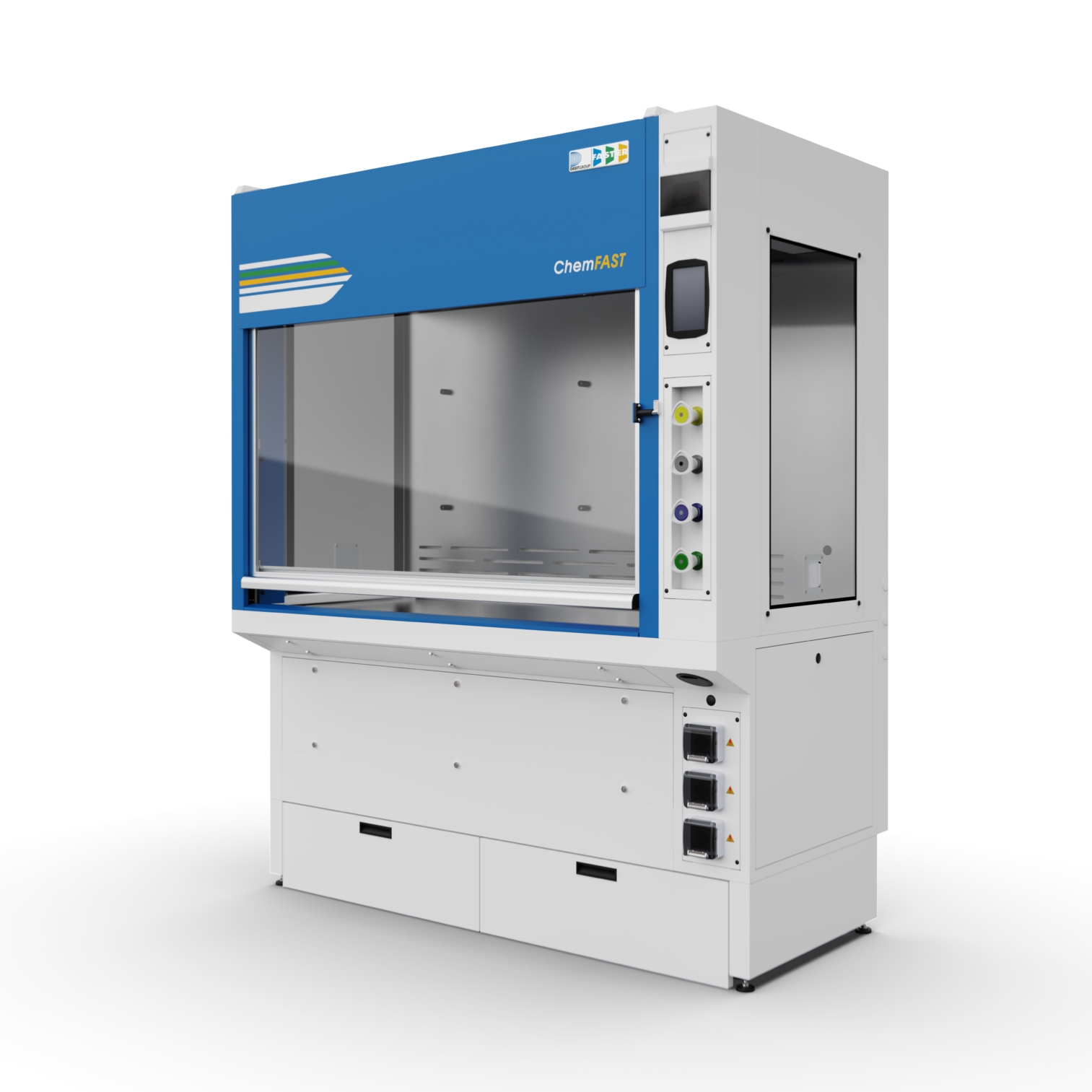

    ChemFAST Premium – Hybrid Ducted + Recirculating Fume Hood
