Edmund Bühler VKS 75 Series (VKS 75 A and VKS 75 B)

Overview

The VKS 75 series represents Bühler’s most powerful floor-standing orbital shakers, engineered for large volume culture applications and continuous heavy-duty use. Both models are ideal for bioprocessing, pilot-scale fermentation, or large-scale tissue culture where high load capacities and consistent motion are critical.







Product Details

VKS 75 A – High-Performance Programmable Shaker

  • Orbital motion with 26 mm stroke
  • Max load: 75 kg
  • Speed range: 30–200 rpm (digital control in 5 rpm steps)
  • Platform size: 760 × 600 mm
  • Programmable timer and runtime profiles
  • Touchscreen control with speed ramping, memory function and safety alarms
  • Continuous or timed operation
  • Quiet belt-driven system
  • Compatible with wide range of clamp and flask options (e.g. up to 32 × 500 ml flasks or 12 × 2 L flasks)
  • Power supply: 100–240 V, IP21
  • Ambient range: 5–50 °C, up to 85% RH
  • Weight: approx. 110 kg
  • Optional interfaces: USB, RS-232, programmable stop/start

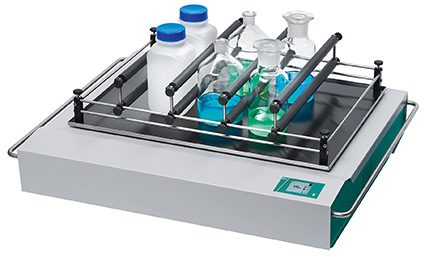

VKS 75 B – Basic Control Variant

  • Same platform and load capacity as VKS 75 A
  • Speed range: 30–200 rpm (analogue or digital non-programmable control)
  • Fixed orbital stroke of 26 mm
  • Timer: 0–120 minutes or continuous
  • Simple speed and time dial interface
  • Ideal for continuous shaking tasks where programmability is not required
  • Reliable and low-maintenance
  • Weight: approx. 105 kg





VKS 75 Series Specification Table

Feature VKS 75 A VKS 75 B
Motion Type Orbital Orbital
Stroke Length 26 mm 26 mm
Max Load 75 kg 75 kg
Speed Range 30–200 rpm (5 rpm steps) 30–200 rpm (analogue or digital)
Platform Size 760 × 600 mm 760 × 600 mm
Control Type Programmable digital with touchscreen Basic analogue or digital
Timer Programmable / continuous 0–120 min / continuous
Weight ~110 kg ~105 kg
Operating Temp/Humidity 5–50 °C / max 85% RH 5–50 °C / max 85% RH
Interfaces USB, RS-232 (optional) None
Typical Use Cases Cell culture, pilot fermentation Continuous routine mixing
