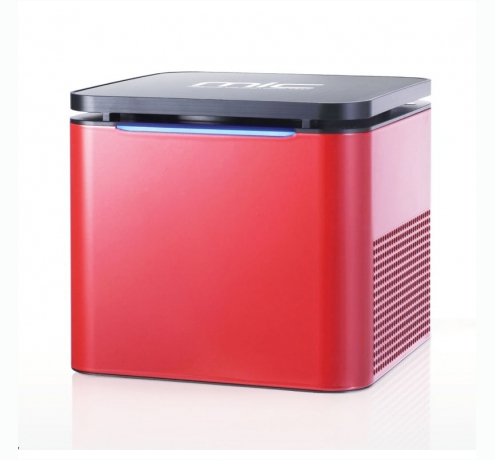

Mic qPCR Cycler – Portable Real-Time PCR Instrument

Overview

Ultra-compact magnetic induction qPCR cycler offering rapid, accurate DNA amplification. Delivers exceptional run-to-run precision, complete portability at just over 2kg, and easy plug-and-play setup for field or lab use.

Product Details

  • Innovative magnetic induction heating enables rapid ramp rates with precise, uniform temperature control.
  • Patented spinning aluminium rotor ensures ±0.25°C accuracy and ±0.05°C well-to-well variation, with zero equilibration lag.
  • Compact and lightweight design, ideal for portable or benchtop use.
  • Simultaneous multi-channel detection with fixed optical paths—no calibration or reference dyes needed.
  • Run up to ten instruments in parallel from one workstation to scale throughput.
  • User-friendly software enables intuitive control, project-based data analysis, and automatic recovery in case of disconnect.
  • Standard 3-year replacement warranty, extendable to 5 years.

Ideal for gene expression, HRM analysis, SNP genotyping, diagnostics, and any lab requiring fast, reliable real-time PCR in a compact format.

Parameter Specification
Dimensions (W × D × H) 150 × 150 × 130 mm (lid closed)
Weight ~2.0–2.1 kg
Temperature Accuracy ±0.25°C
Temperature Uniformity ±0.05°C (HRM models); ±0.10°C (2- and 4-channel models)
Thermal Ramp Rates Heating ~4°C/s; Cooling ~3°C/s
Temperature Range 35°C – 99°C
Sample Format 0.1mL strips of 4 tubes; 5–30µL reaction volume
Sample Capacity 48 tubes per run
Optical Channels Available in 2-channel or 4-channel models
Excitation Sources High-intensity LEDs per channel
Detection Photodiodes, simultaneous multi-channel acquisition
Interface USB 2.0 or Bluetooth
Software Compatibility Windows 8 or later; Intel i5 or better; 4GB RAM minimum
Power Supply 100–240VAC, 50/60Hz, 4A max
Operating Conditions 18–30°C; Relative humidity: 20–80%
