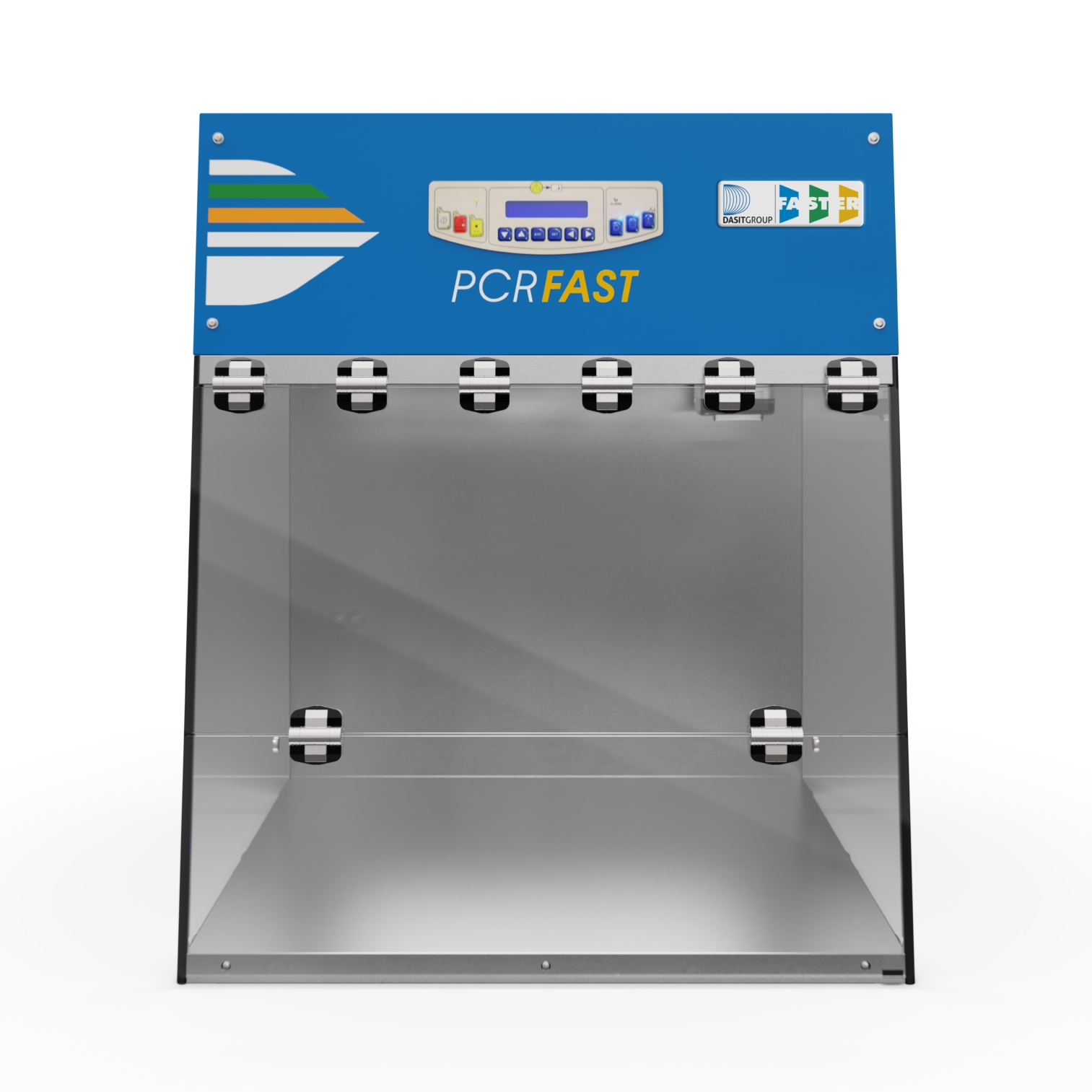

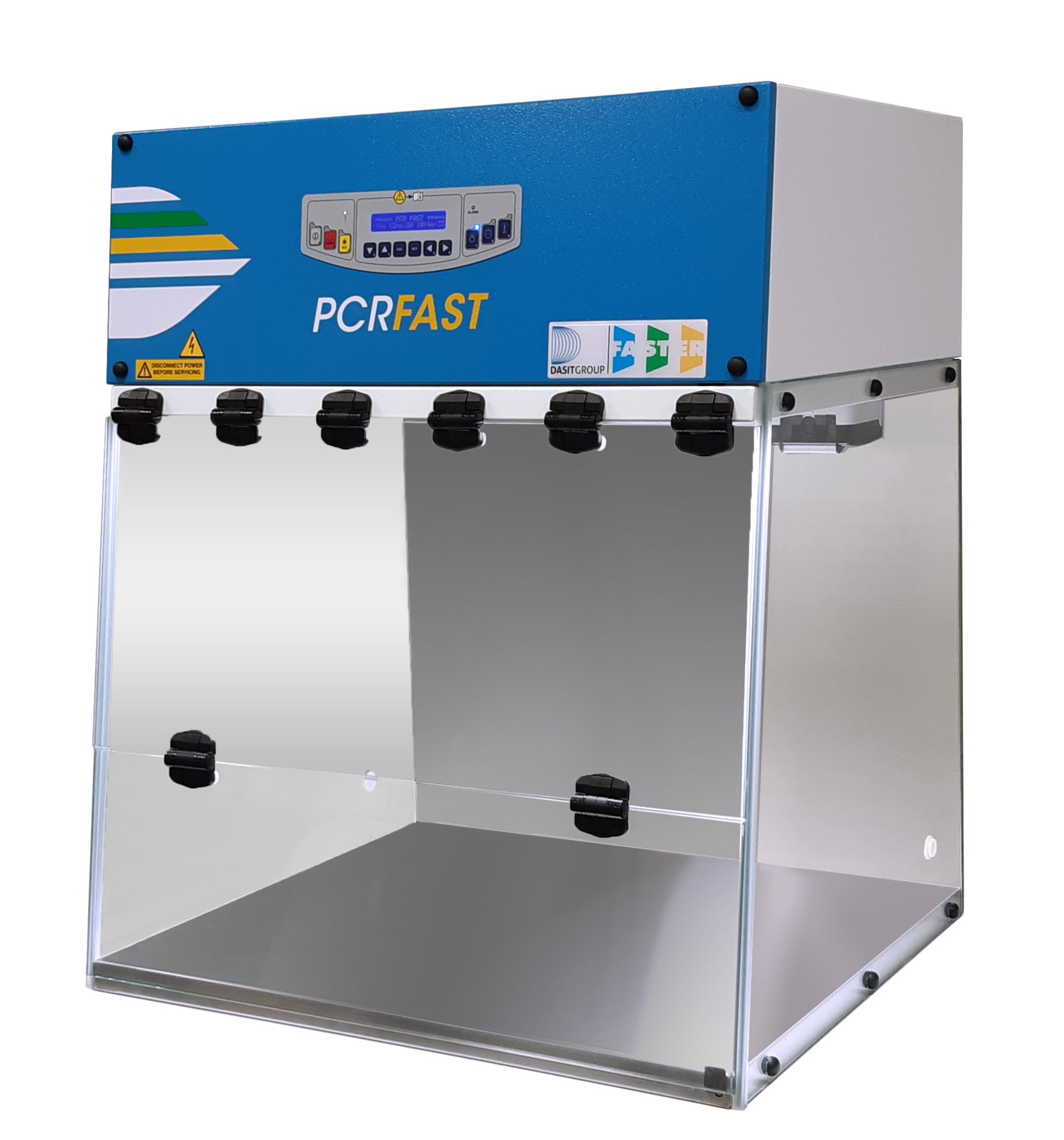

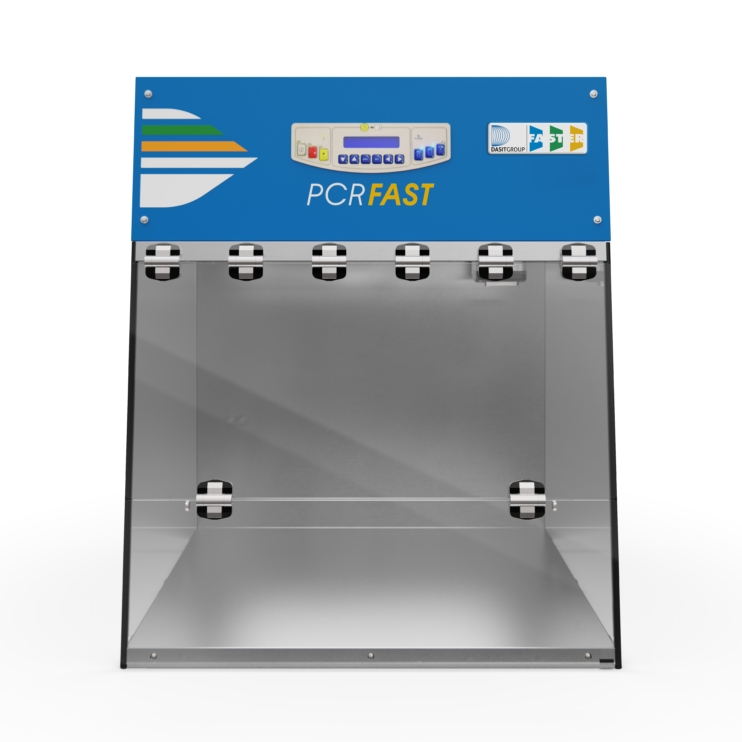

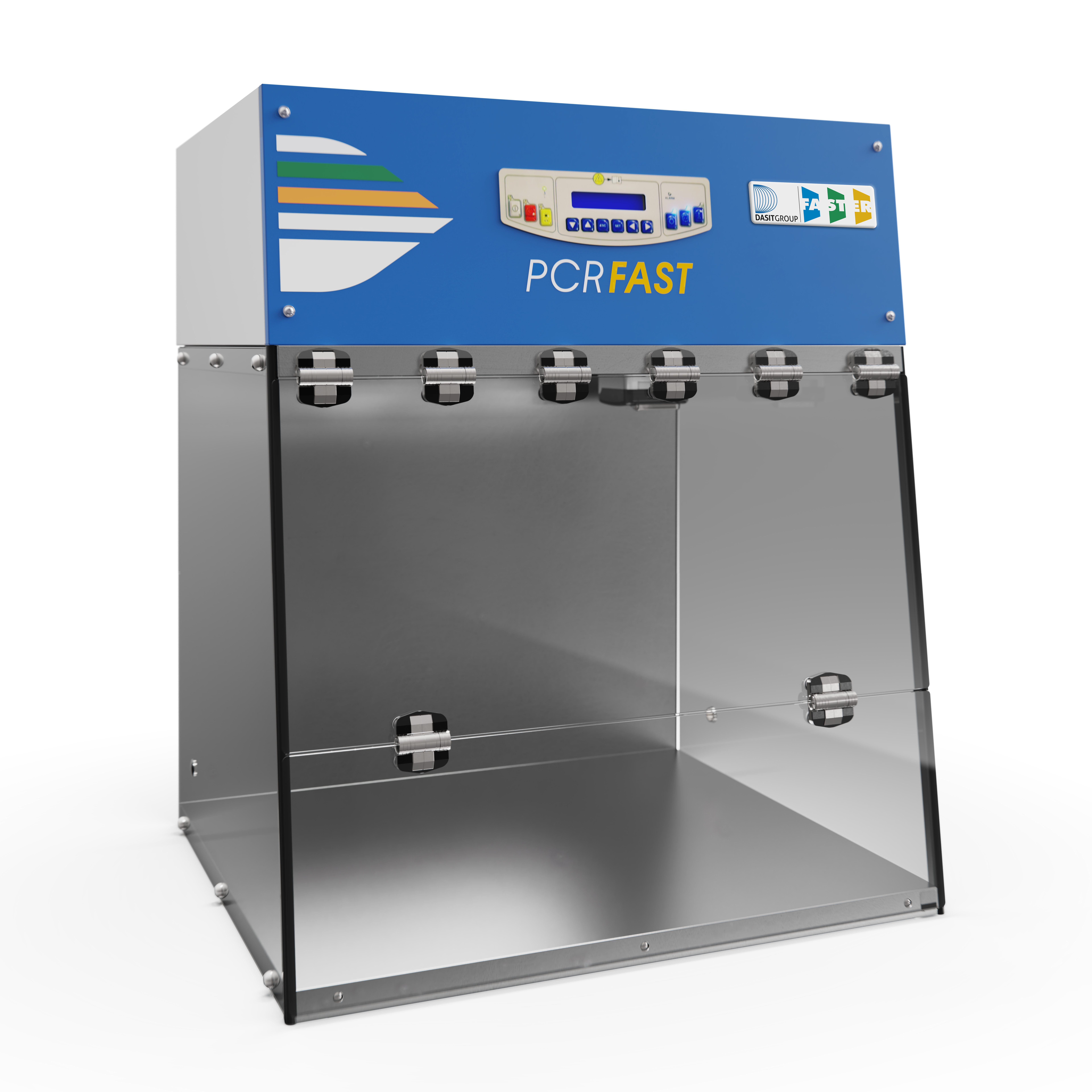

PCR FAST – PCR Workstation

Overview

Compact DNA/RNA amplification cabinet designed for safe, sterile Polymerase Chain Reaction (PCR) workflows. Ideal for laboratories in microbiology, haematology, genetics and cell culture. Features industry-leading LED UV technology to ensure effective decontamination between runs and prevent cross-contamination.



Product Details

  • Specifically designed for PCR amplification and DNA/RNA manipulation
  • LED UV light irradiation for effective decontamination and sample protection
  • Programmable UV exposure with 4-hour cycle setting and ±1 min accuracy
  • LED UV peak wavelength of 275 nm for optimal sterilisation (vs. 254 nm in traditional bulbs)
  • White LED lighting with >2100 lux for excellent visibility
  • Safety switch disables UV when front sash is opened
  • Compact benchtop format ideal for small lab spaces
  • Internal work area in AISI 304L stainless steel with pharmaceutical-grade finishing
  • Anti-UV safety glass side panels and front window
  • Epoxy-painted steel body with Alesta® antimicrobial coating
  • One IP66 internal electrical socket as standard
  • PCR sample preparation
  • Genetic testing
  • Molecular diagnostics
  • Cell and tissue culture
  • Forensic DNA analysis

Specifications

Parameter Value
External Dimensions (W x D x H) 712 x 620 x 860 mm
Internal Dimensions (W x D x H) 700 x 600 x 550 mm
Working Aperture 200 mm
Max Front Aperture 500 mm
Weight 55 kg
UV Radiant Flow 170 mW
UV Lamp Lifetime 8,000 hours
UV Peak Wavelength 275 nm
Noise Level (with HEPA kit) <54 dB(A)
Lighting Level >2100 lux
Energy Consumption 0.11 kW
Electrical Supply 1Ph+E, 230V, 50Hz
Internal Socket Load Capacity Max 4A

Optional Accessories

  • HEPA H14 filter + motor blower kit for laminar airflow
  • Additional electrical sockets (total load capacity up to 4A)
  • Height-adjustable support stand

Construction Materials

  • Body: Epoxy-painted steel with antimicrobial coating
  • Work surface and back panel: AISI 304L stainless steel
  • Sash and sides: Anti-UV safety glass

Ordering & Customisation

  • Supplied as standard PCR preparation cabinet
  • Optional upgrade with HEPA laminar airflow kit
  • Compatible with MSC installation and support services
  • Bespoke adaptations available on request
