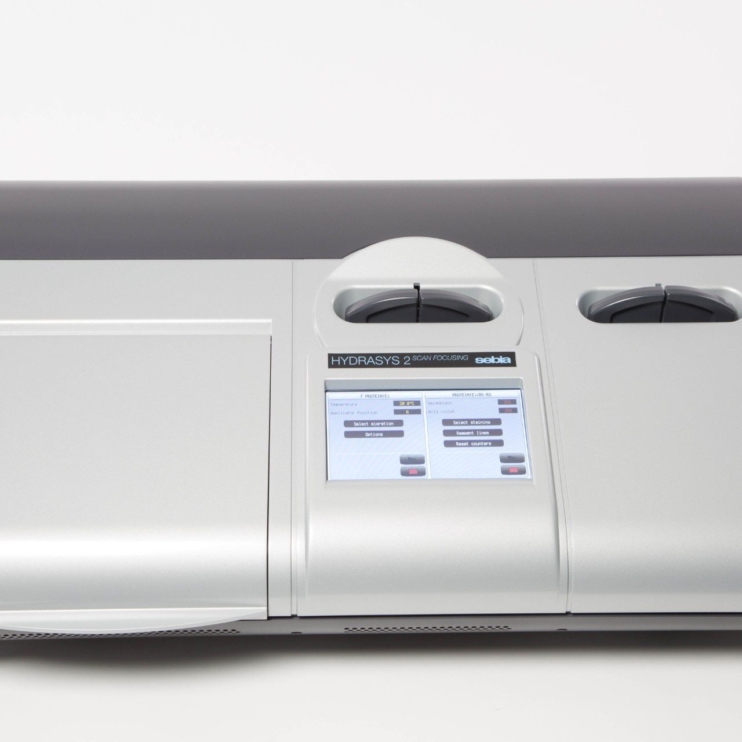

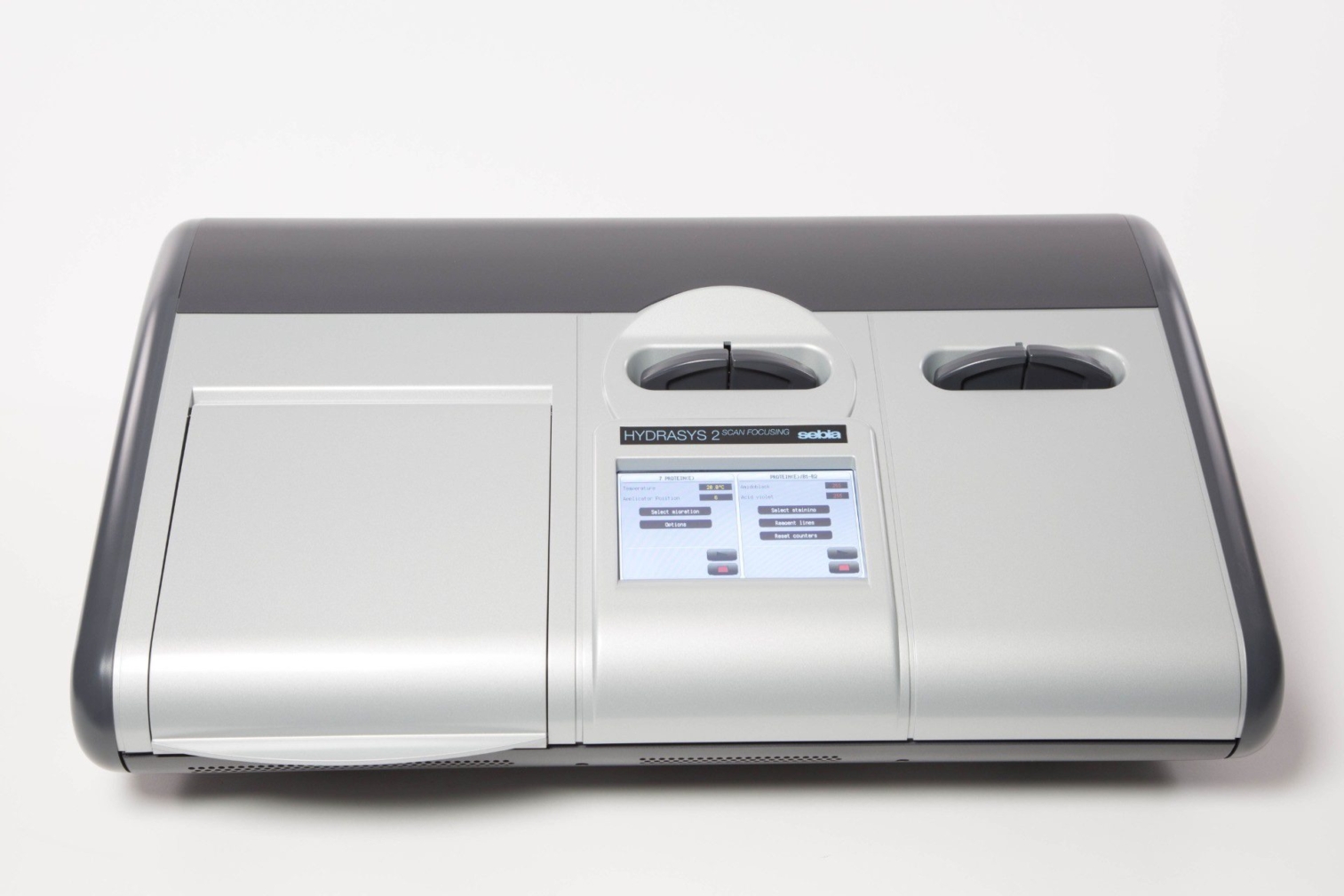

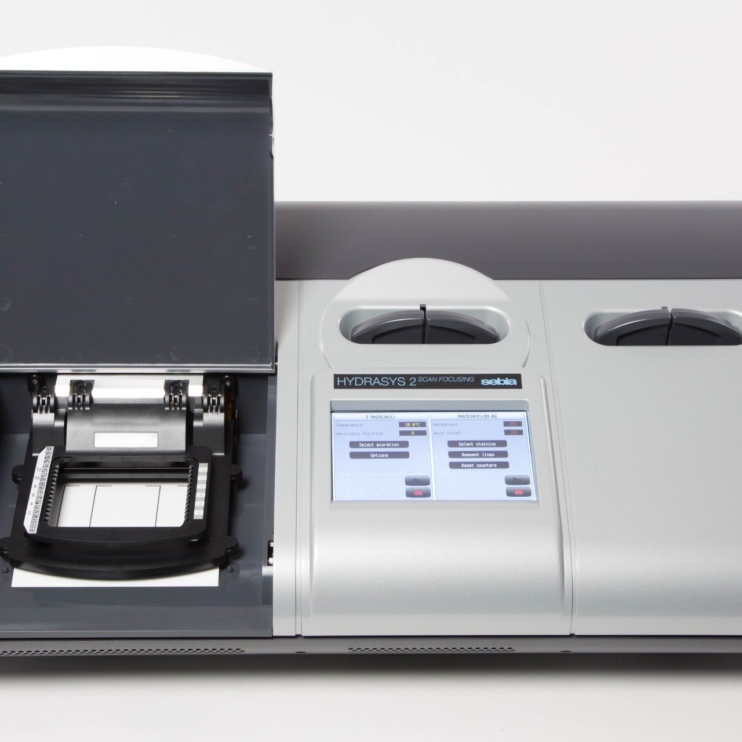

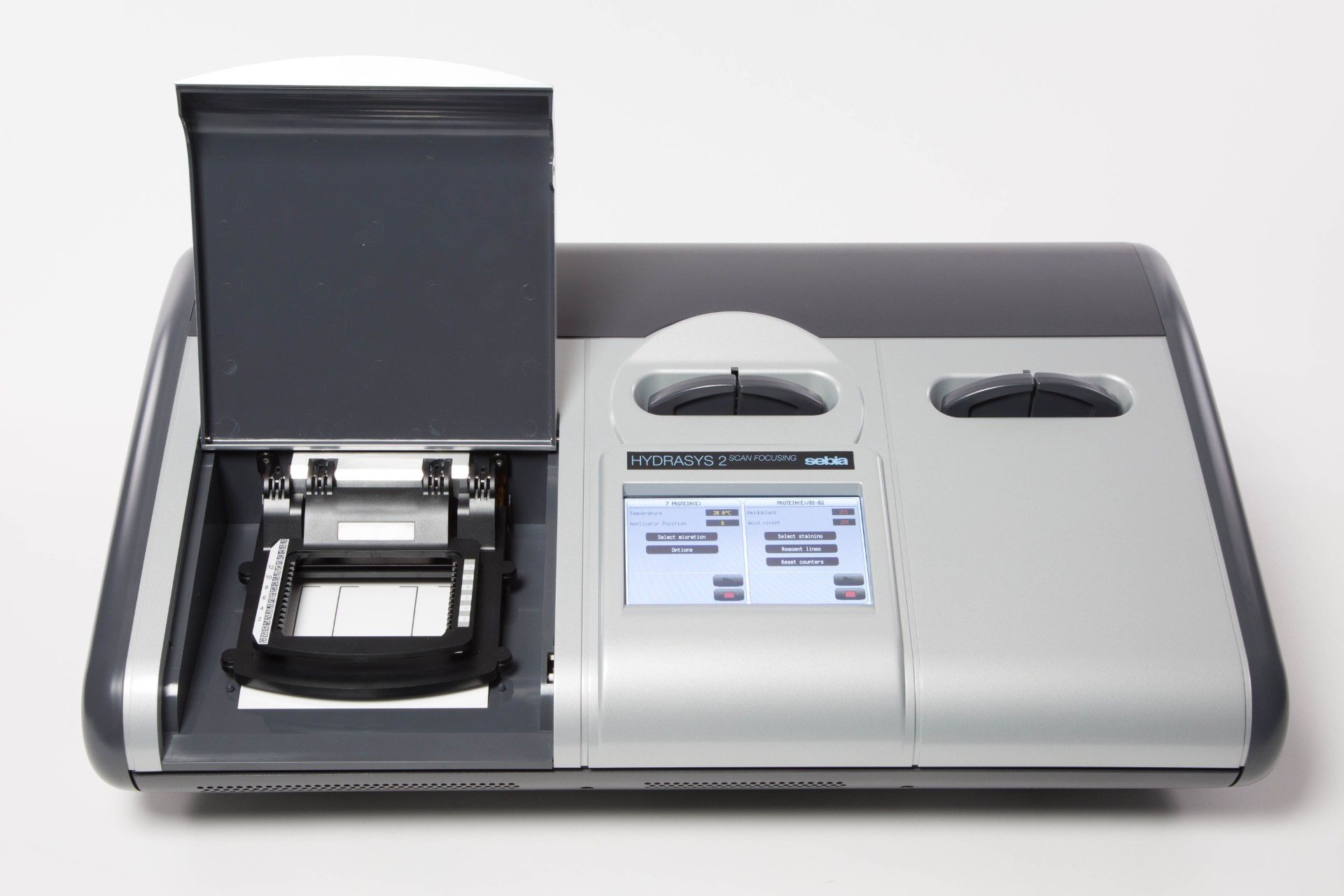

HYDRASYS 2 SCAN FOCUSING – All-in-One Gel Electrophoresis System

Overview

HYDRASYS 2 SCAN FOCUSING is a comprehensive agarose gel electrophoresis analyser integrating migration, staining and scanning. Designed for high-quality, fully automated testing workflows, it supports a broad test menu and ensures throughput, traceability and ease of use in clinical diagnostics.





Product Details

Key Benefits

  • High-quality analytical results – Confident patient reporting through best-in-class gel electrophoresis assays
  • Multi-functional operation – Carries out sample application, electrophoresis, staining and scanning in one system
  • Advanced workflow automation – Seamless integration with ASSIST enables traceable pipetting and handling
  • Powerful software – PHORESIS Core Software handles result interpretation, data management and network access





Diagnostic Focus Areas
The HYDRASYS 2 SCAN FOCUSING supports diagnostic workflows for:

  • Multiple Myeloma – via Protein Electrophoresis and Immunofixation
  • Haemoglobin Disorders – via Haemoglobin Electrophoresis
  • Alpha-1 Antitrypsin Deficiency – via CSF/A1AT isoelectrofocusing
  • CNS Inflammatory Disease – via CSF local IgG synthesis detection
  • Support tests – such as HYDRASHIFT to manage monoclonal antibody interference

Workflow Capabilities

  • Automated preparation and application from primary tubes
  • Multi-gel processing in a single run
  • Automated band quantification and optimal scanning performance
  • Supports standard and fast IFE protocols



Technical Highlights

Feature Specification / Capability
Test Menu Includes serum/urine protein electrophoresis, immunofixation, HYDRASHIFT, CSF & A1AT iso-focusing, iso-enzymes, Hb electrophoresis
Sample Types Serum, urine, plasma, CSF, whole blood, secretion samples
Throughput Up to 108 protein tests/hour; 17 IFE tests/hour
Gel Capacity 1–54 samples per gel; up to 3 gels processed consecutively
Reading Technology Two-dimensional scan with precise quantification and stability
Instrument Interface Touch-enabled LCD screen with intuitive programming
Design Features Peltier temperature control, compact footprint, flexible programming and easy maintenance
Traceability Barcode-based tracking of primary tubes, applicators and gels with ASSIST integration
Reagent Handling Onboard staining, automated sample dispensing
