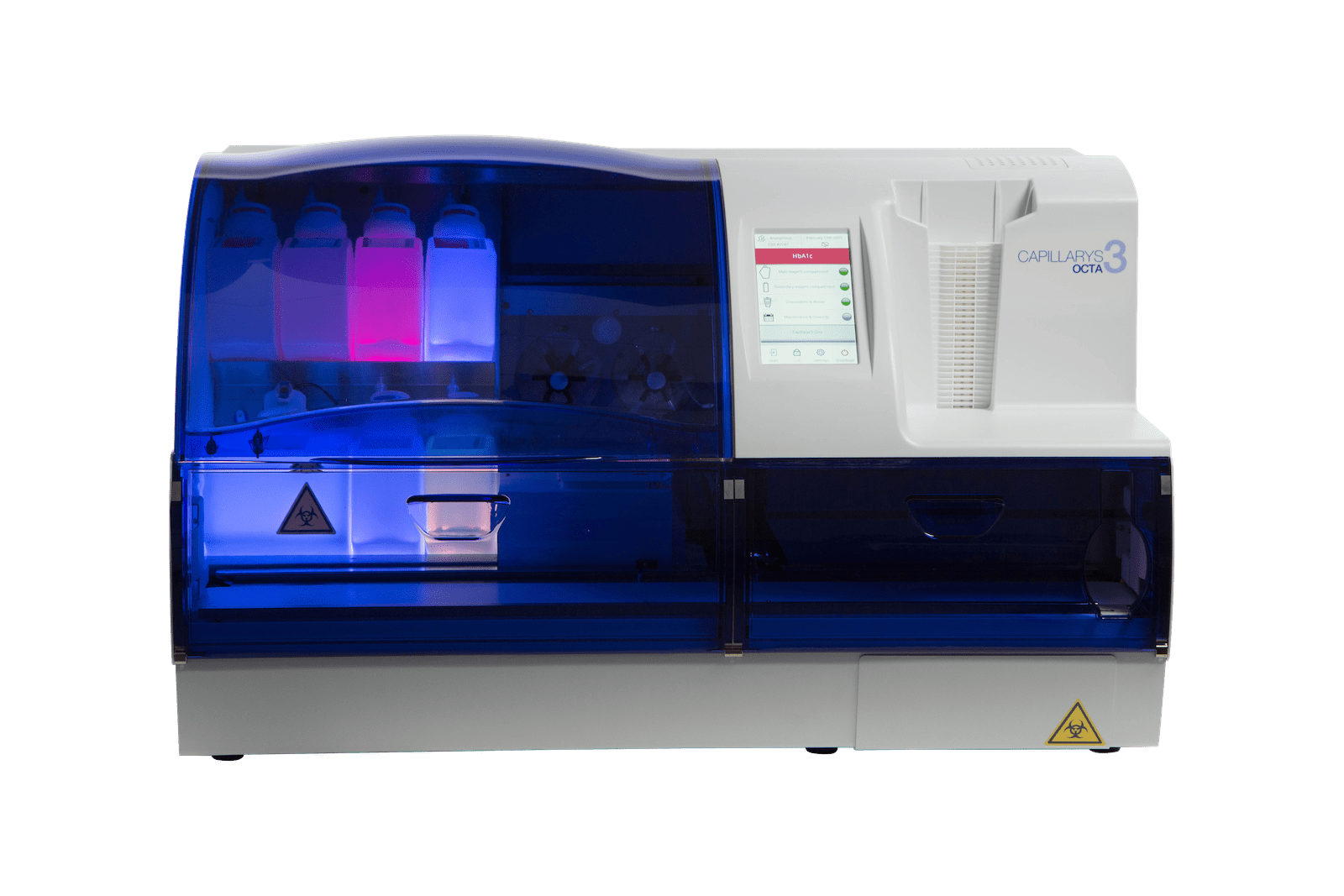

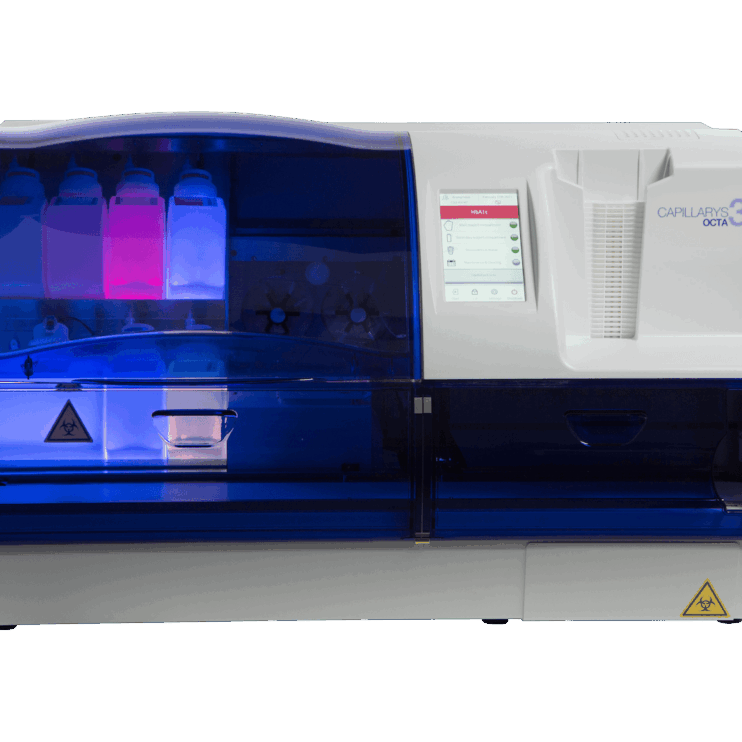

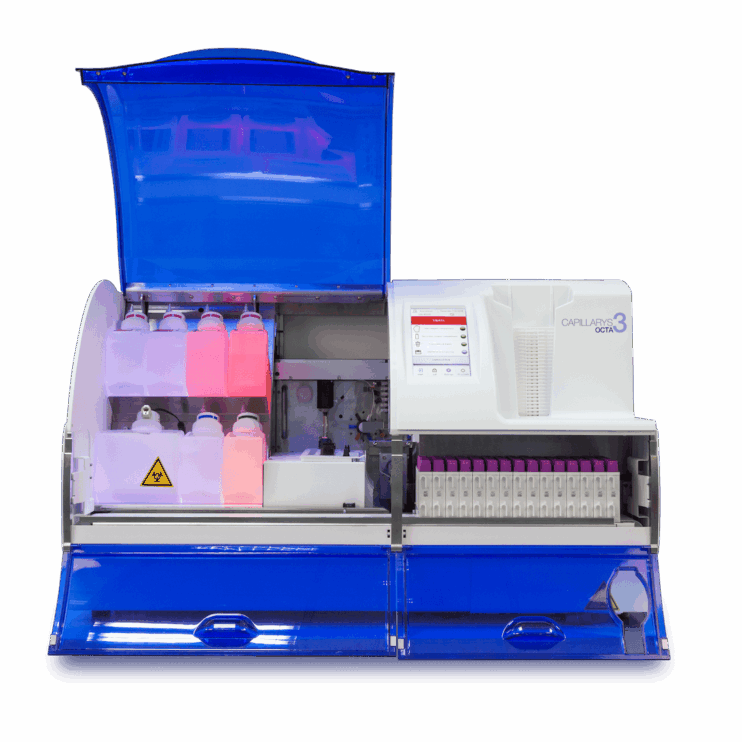

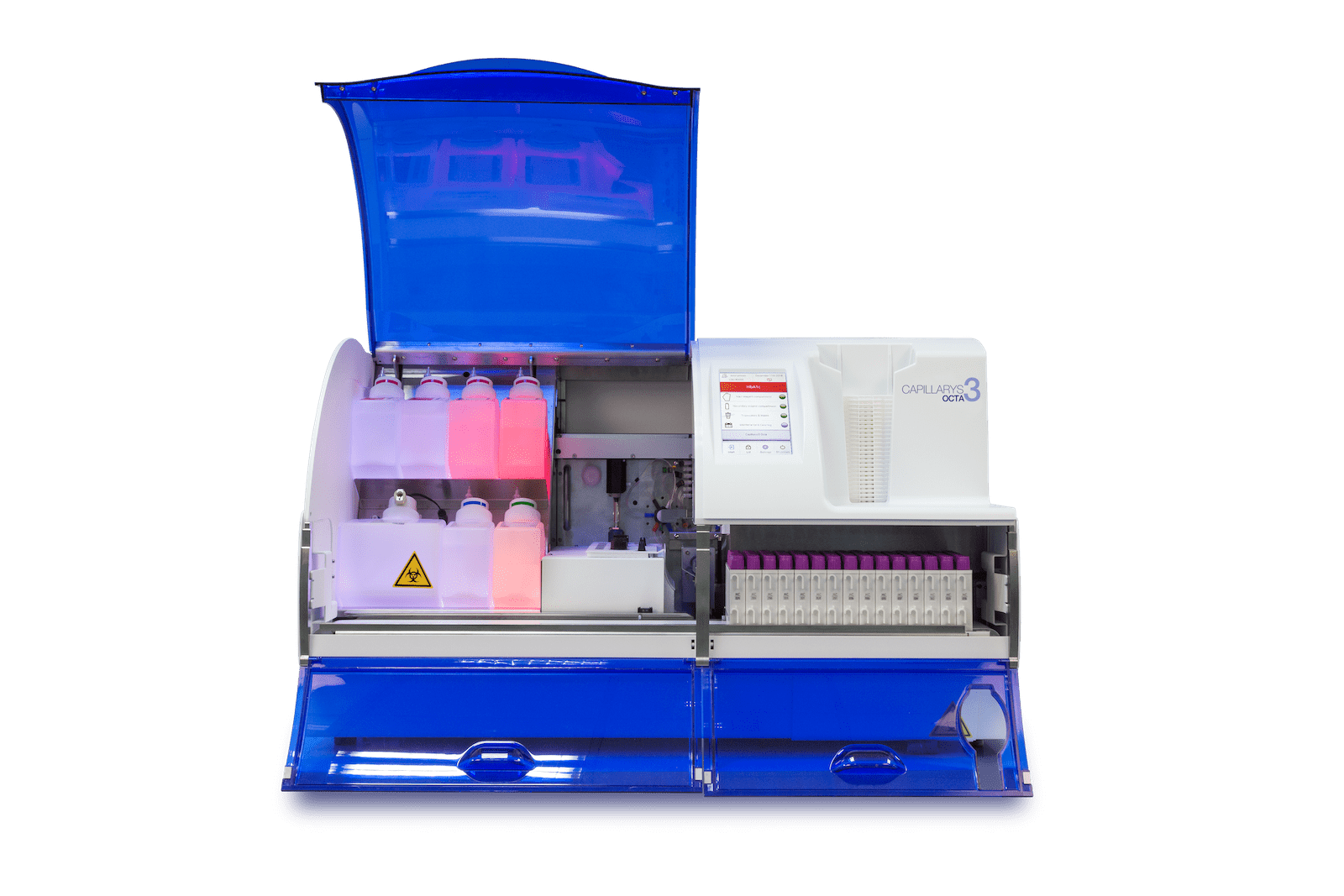

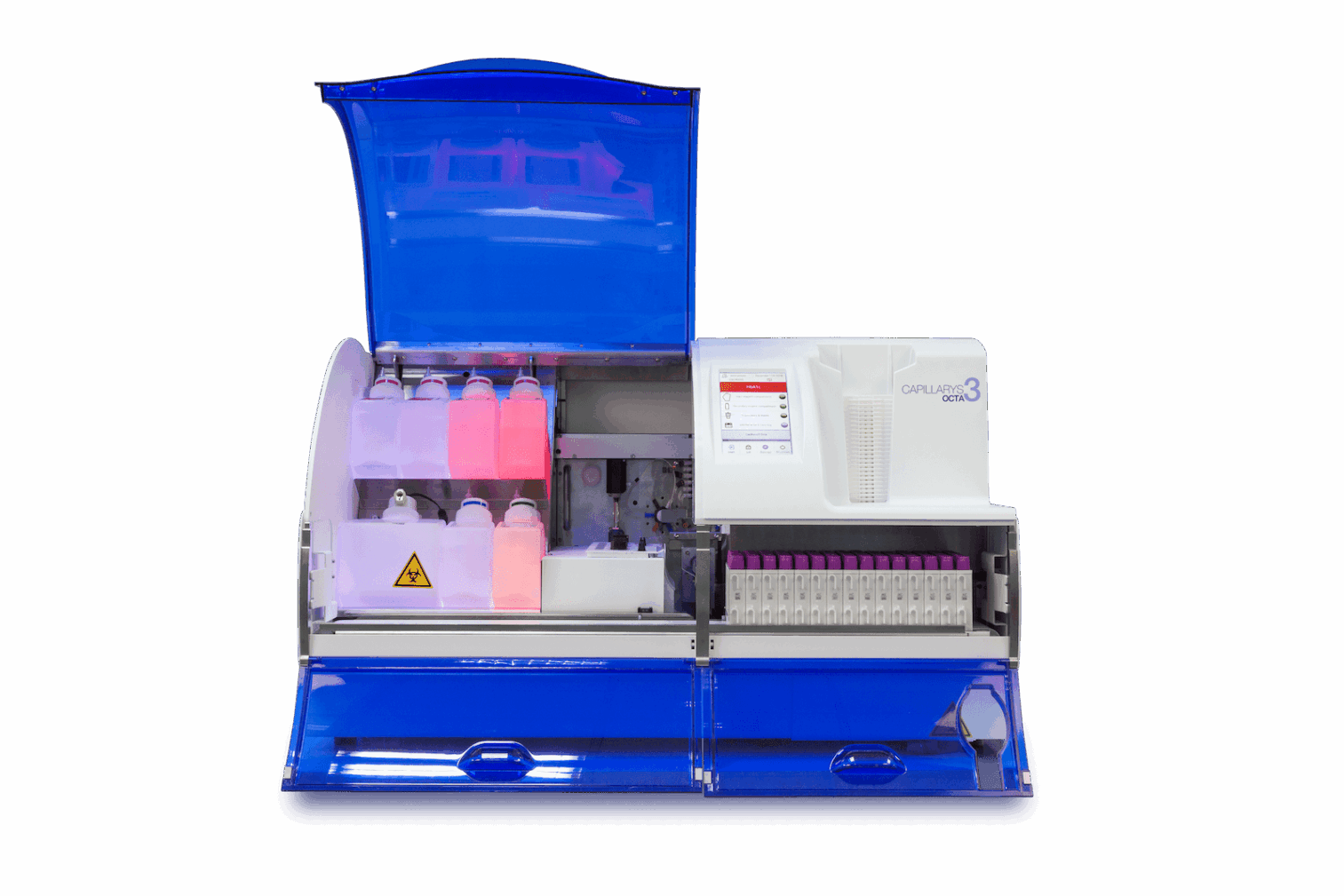

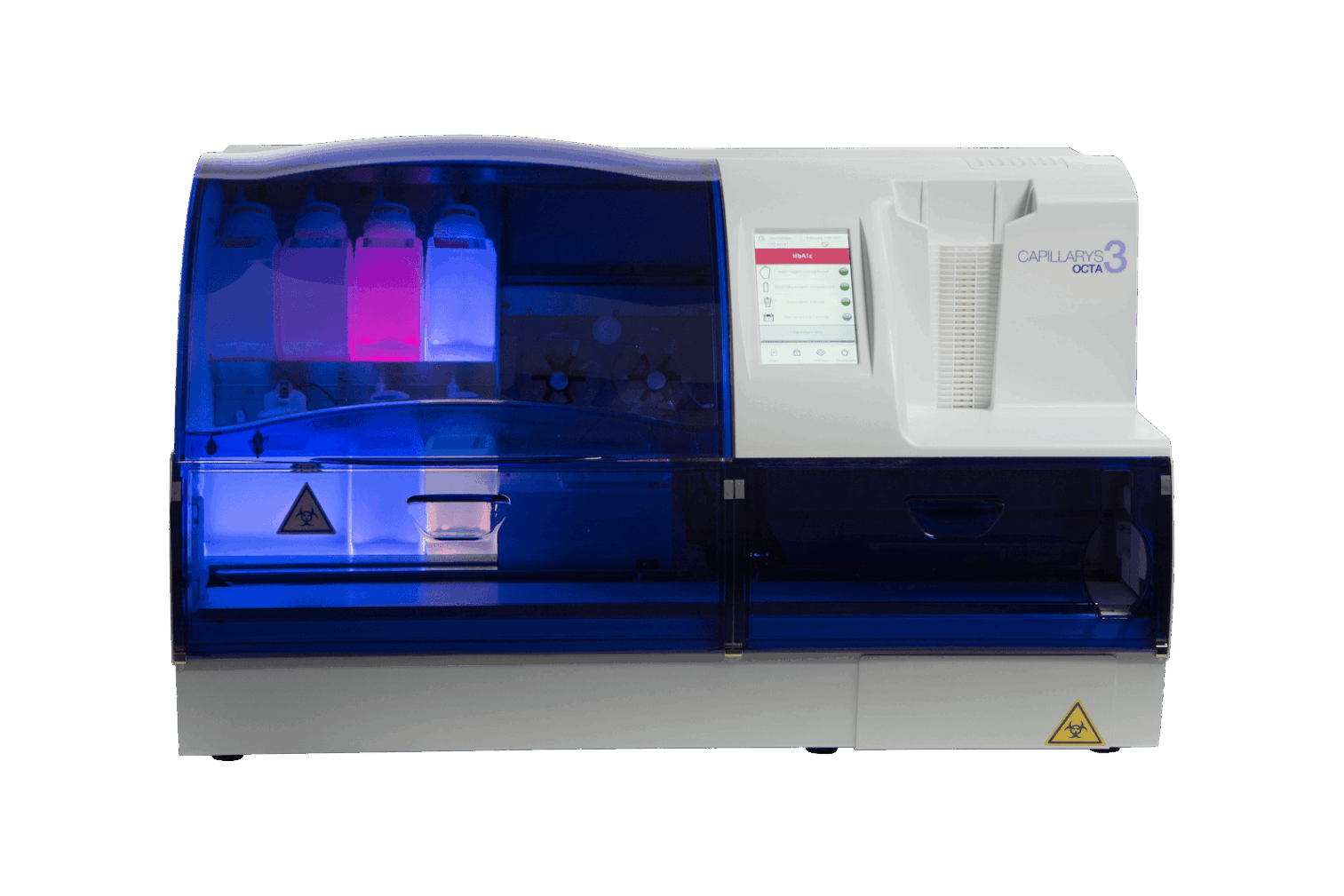

CAPILLARYS 3 TERA & OCTA – Automated Capillary Electrophoresis Systems

Overview

CAPILLARYS 3 TERA and OCTA are high-performance, fully automated capillary electrophoresis systems designed for medium to high-throughput laboratories. Featuring 12 and 8 capillaries respectively, these instruments provide high-resolution analysis with exceptional consistency and ease of use. Their primary clinical applications include the diagnosis and monitoring of Multiple Myeloma, Diabetes, Haemoglobin Disorders and Chronic Alcoholism.









Product Details

Key Benefits

  • High throughput with walk-away automation
  • Advanced PHORESIS software for intuitive control, analysis and LIS integration
  • Shared reagents and consumables between TERA and OCTA streamline inventory and reduce costs
  • Continuous loading with random access and mixed assay capability
  • RFID reagent tracking and on-the-fly replacement
  • Scalable platform with centralised management via PHORESIS SQL







Assay Menu

  • Serum Protein Electrophoresis (SPE)
  • Serum Immunotyping
  • Urine Protein Electrophoresis (UPE)
  • Urine Immunotyping
  • Haemoglobin A1c (HbA1c)
  • Haemoglobin Electrophoresis
  • Carbohydrate-deficient Transferrin (CDT)

Target Applications

  • Multiple Myeloma – via Serum and Urine Protein Electrophoresis and Immunotyping
  • Diabetes – via HbA1c monitoring
  • Haemoglobin Disorders – via Haemoglobin Electrophoresis
  • Alcoholism/Chronic Alcohol Abuse – via CDT testing

Sample Types

  • Serum
  • Urine
  • Whole Blood
  • Capillary Blood
  • Primary tube sampling with automated piercing and mixing

Instrument Features

  • PHORESIS software for control, interpretation and audit trail
  • Intuitive touchscreen interface
  • Four-reagent tray with temperature-controlled antisera section
  • RFID tracking of reagents (type, batch, expiry, volume)
  • Automated technique switching
  • Continuous loading with random access
  • Scalable configuration including TERA MC (multi-module central loading)









Capabilities & Performance

Feature OCTA (8 Capillaries) TERA (12 Capillaries)
Serum Protein Electrophoresis (SPE) 79 tests/hour 99 tests/hour
Urine Protein Electrophoresis (UPE) 70 tests/hour 97 tests/hour
Immunotyping 9 tests/hour 11 tests/hour
HbA1c 43 tests/hour 63 tests/hour
Haemoglobin Electrophoresis 45 tests/hour 65 tests/hour
CDT (Carbohydrate-deficient Transferrin) 49 tests/hour 73 tests/hour

Figures based on software version 9.30









  • alegria 2

    Clinical Diagnostics

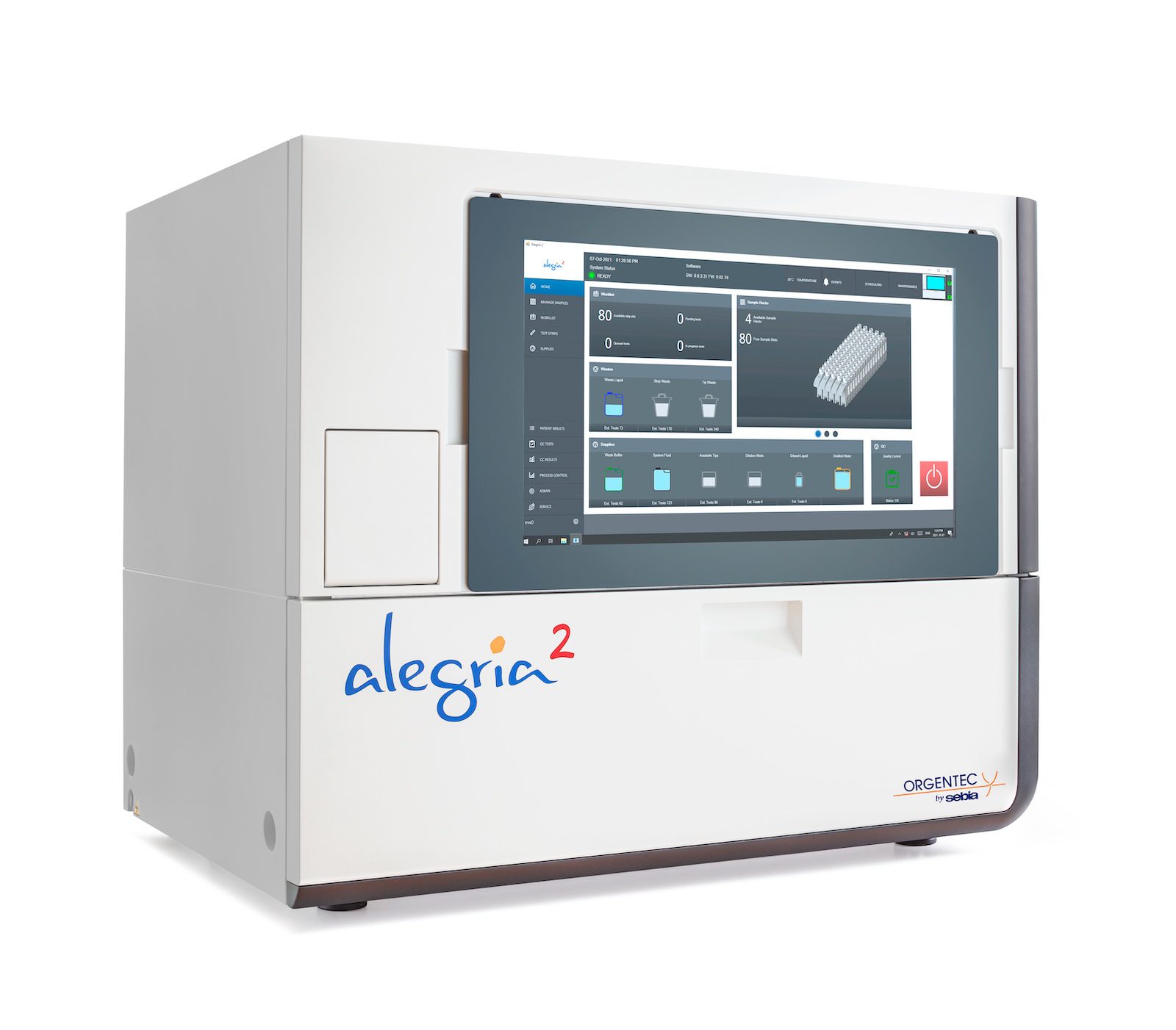

    Alegria 2 – Automated ELISA Monotest Immunoassay System

  • Capillarys 3 DBS 1

    Clinical Diagnostics

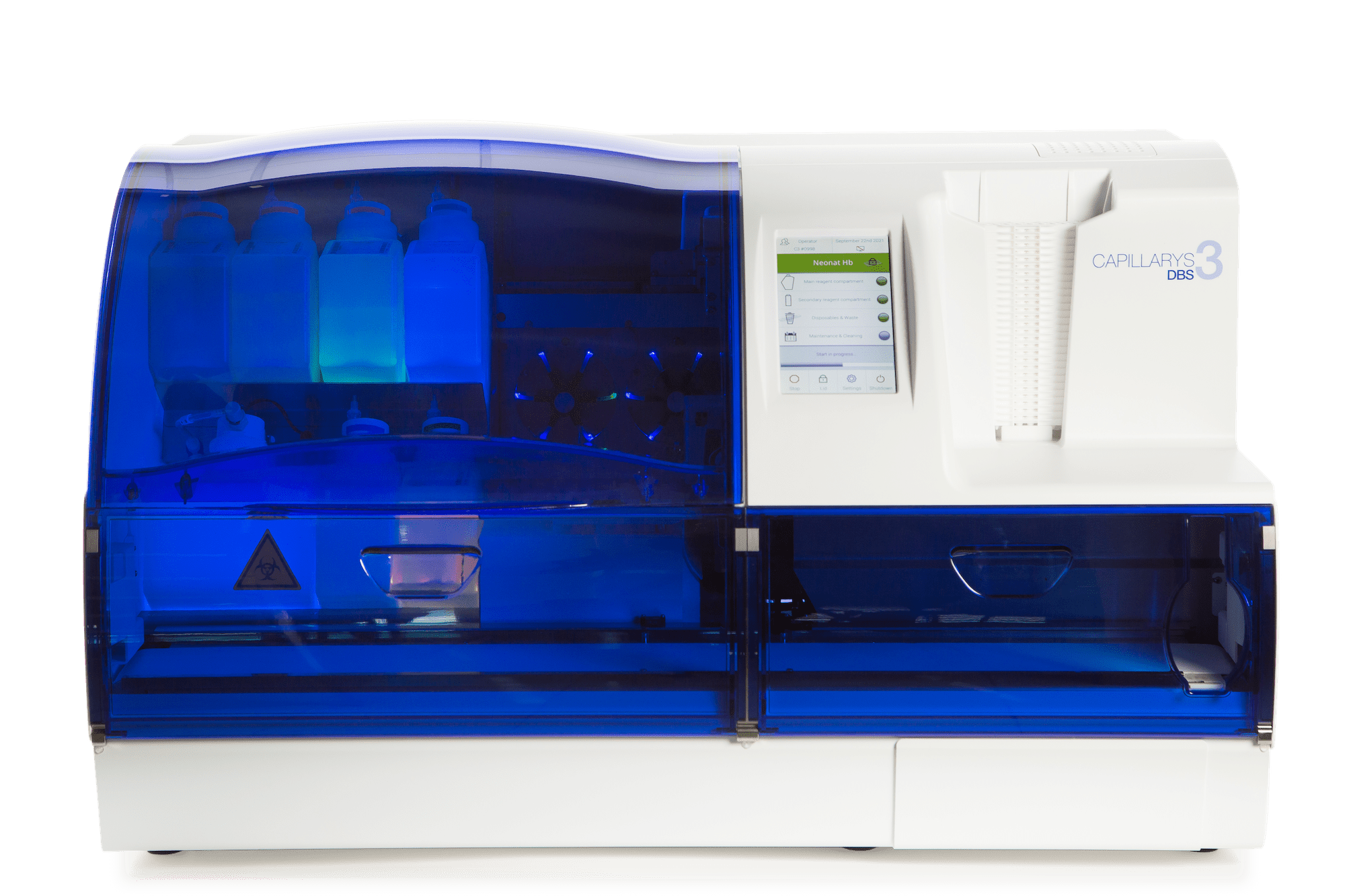

    CAPILLARYS DBS – Capillary Electrophoresis for Newborn Screening

  • Hydrasys 2 Scan Focusing

    Clinical Diagnostics

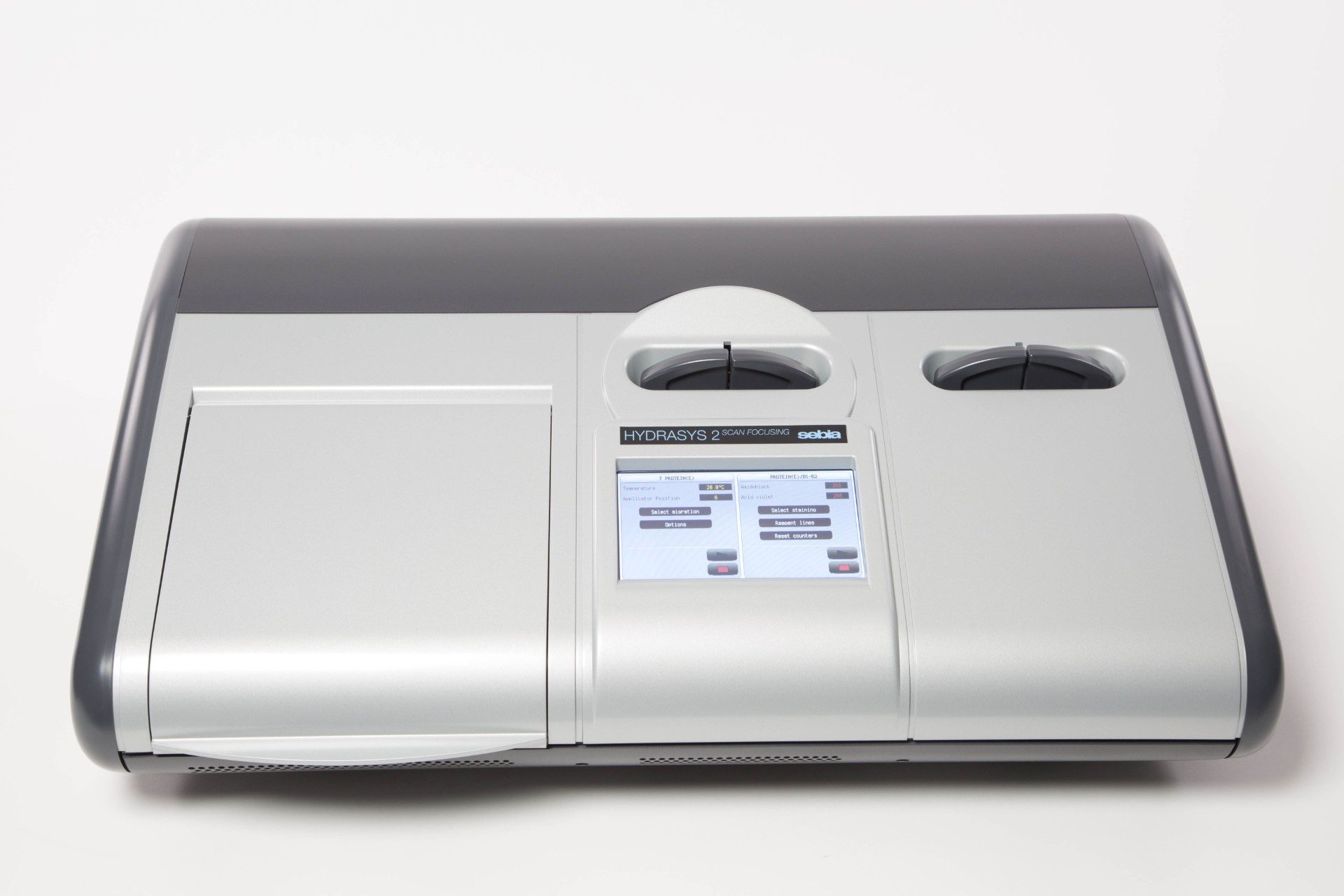

    HYDRASYS 2 SCAN FOCUSING – All-in-One Gel Electrophoresis System
