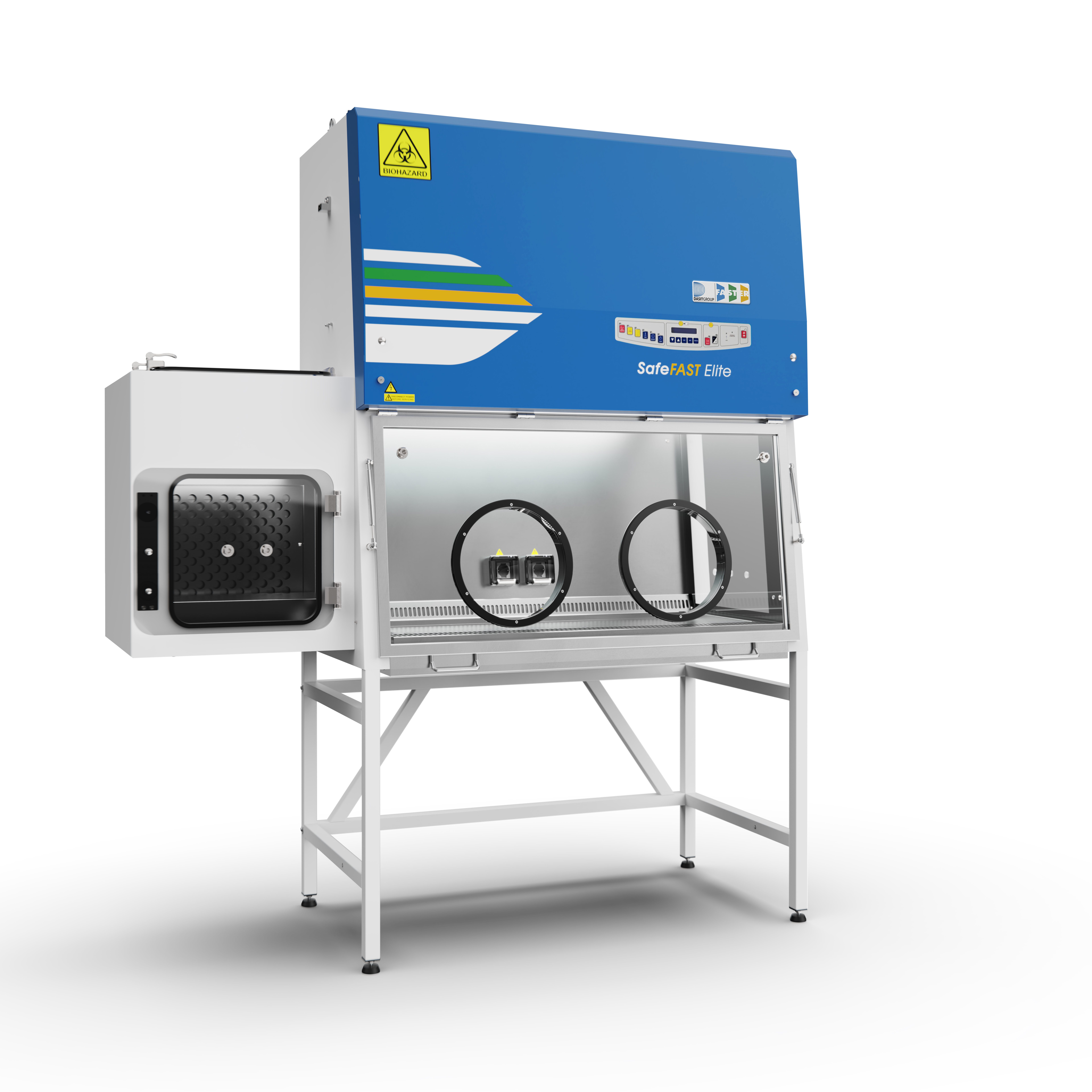

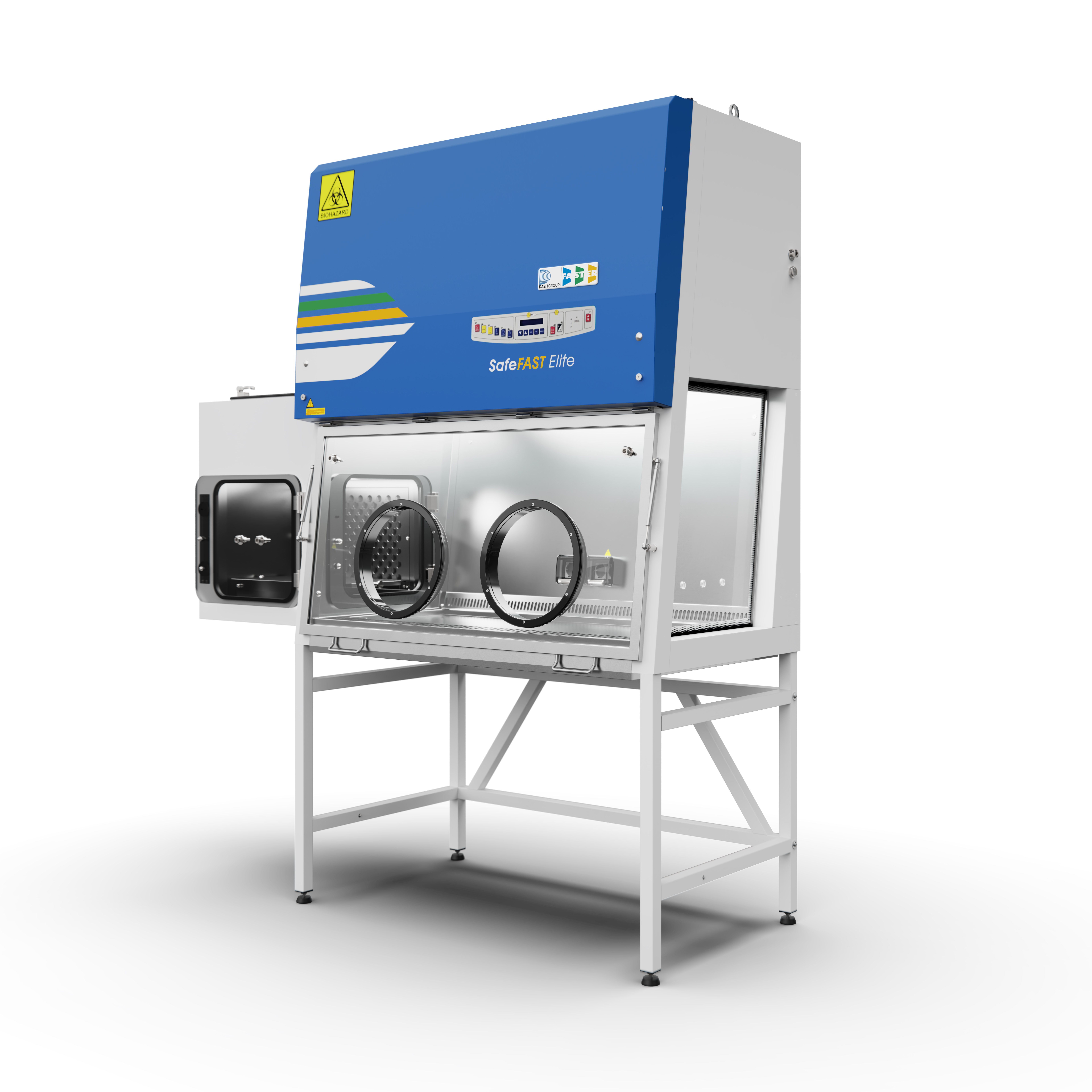

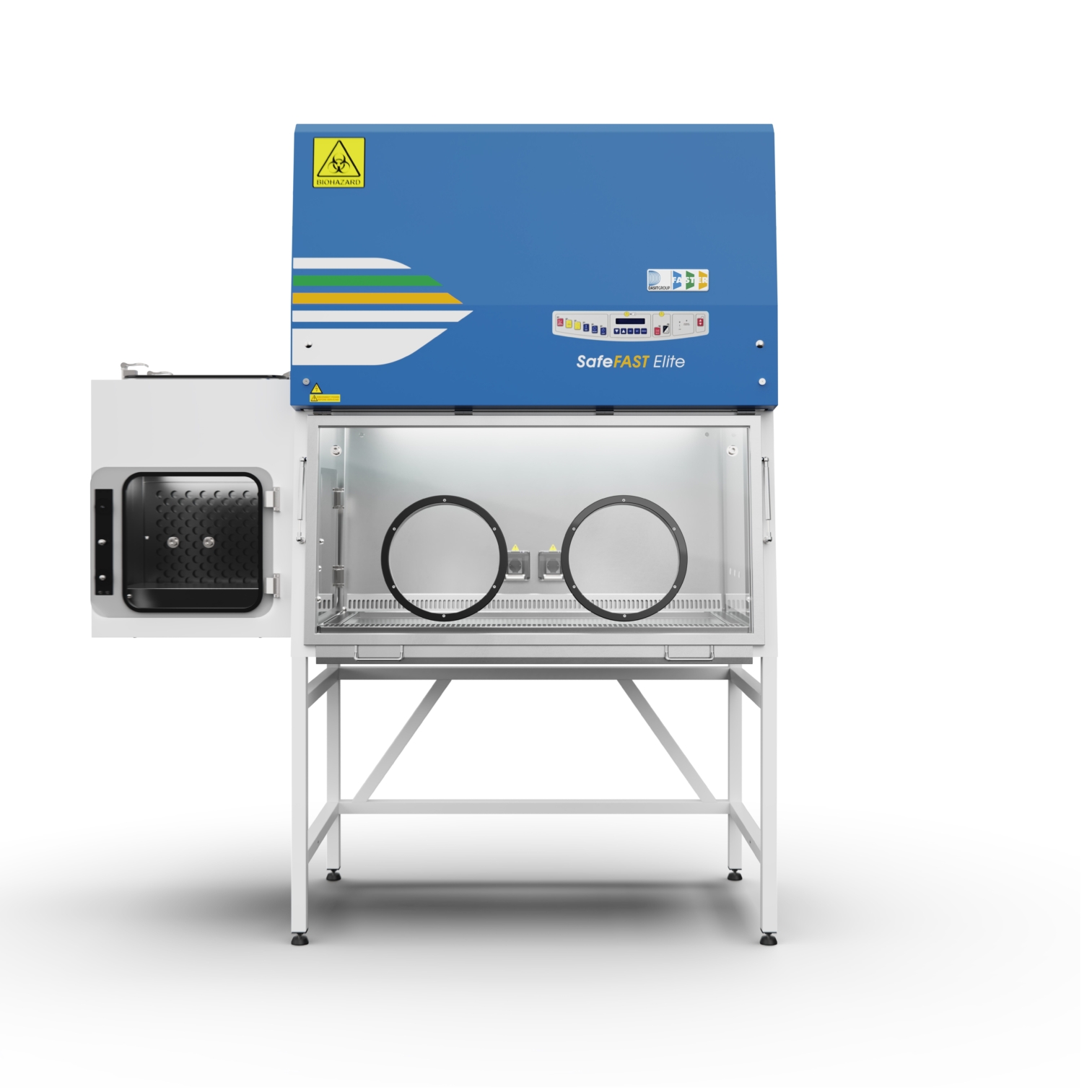

SafeFAST Elite Class III – Class III Microbiological Safety Cabinet

Key Features

• Class III microbiological safety cabinet designed to EN 12469:2000
• Complete physical separation between operator and product
• Vertical laminar airflow with negative pressure containment
• Triple HEPA H14 filtration (inlet, exhaust and downflow)
• Fully enclosed transfer hatch with interlocked safety glass doors
• Electromagnetically interlocked doors with programmable ventilation cycle
• High-resolution alpha-numeric display with real-time air velocity and pressure monitoring
• Advanced alarm system (visual and audible) for key parameters including airflow, filter life and door status
• Neoprene gloves and PVC sleeves on 300 mm polyethylene support rings for safe manipulation
• Optional UV lamp, gas taps, additional sockets and automatic lifting stand available

Construction

• External body in epoxy-coated steel with anti-microbial coating
• Work surface in AISI 316L stainless steel (perforated, removable)
• Internal chamber and spillage tray in AISI 304 stainless steel
• Frontal and side screens in safety glass
• Transfer hatch in AISI 304 stainless steel with safety glass doors

Filtration

• Inlet: Dual H14 HEPA/ULPA filters (99.995% MPPS efficiency)
• Downflow: H14 HEPA/ULPA filter
• Exhaust: Dual H14 HEPA/ULPA filters
• All filters accessed from the front for maintenance

Ventilation

• Two DC motor blowers (centrifugal, direct drive, IP55 rated)
• Microprocessor-controlled speed regulation to maintain optimal airflow
• Front-accessible motor blower maintenance

Controls and Monitoring

• Touch-sensitive control panel with alpha-numeric display
• Displays air velocity, internal pressure, UV and HEPA filter runtime, service logs and alarms
• Settable decontamination and UV programmes
• Multi-language support and password protection

Transfer Hatch

• Constructed in stainless steel with safety glass doors
• Sliding tray in AISI 316L
• Internal/external doors interlocked and ventilated
• Foot-switch internal release, external button access

Glove System

• Neoprene gloves with abrasion-resistant sleeves
• Glove ring diameter 300 mm for extended reach
• Glove and sleeve replacement via O-ring system

Standard Features

• Dimmable LED lighting
• Internal IP55 socket
• DEHS test inlet port
• Safety glass viewing panels
