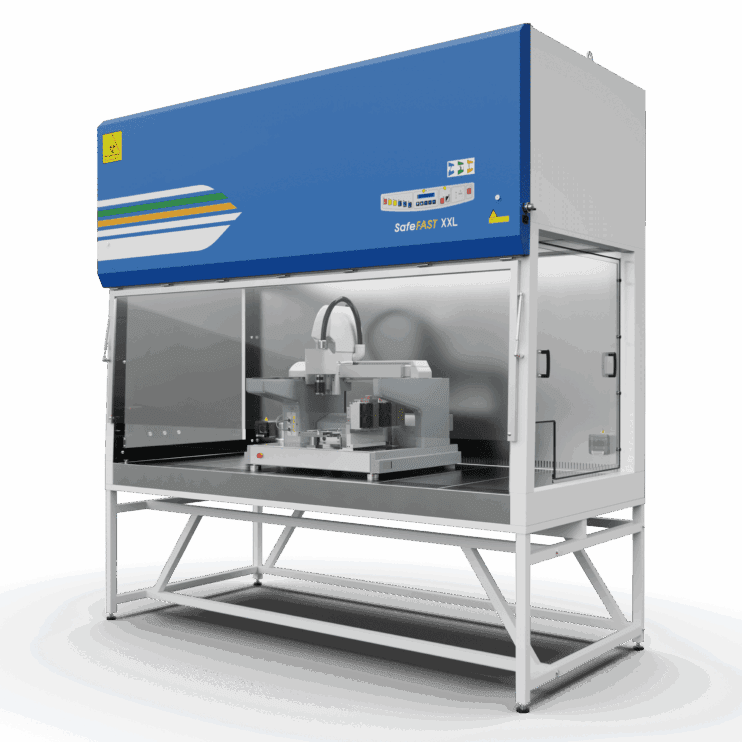

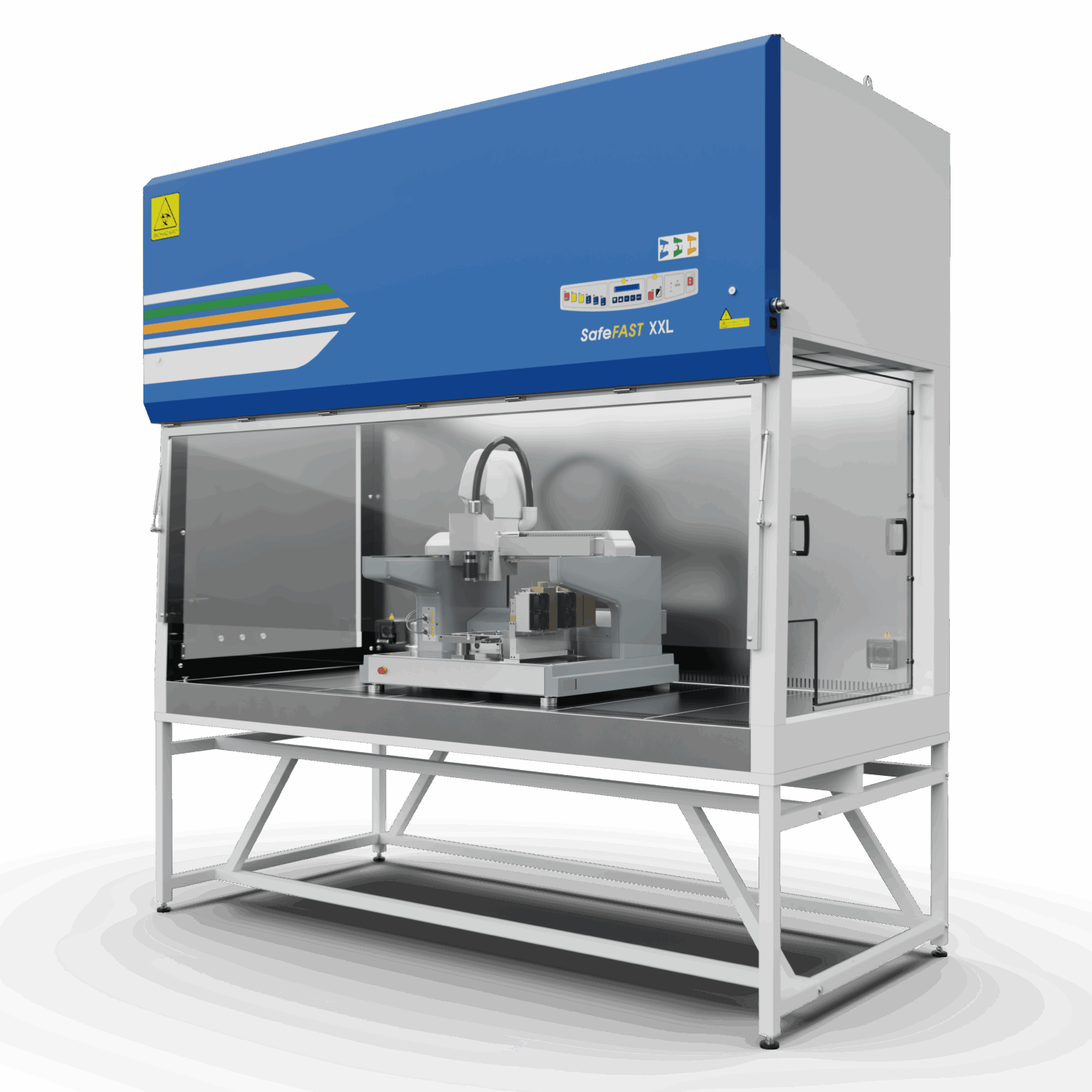

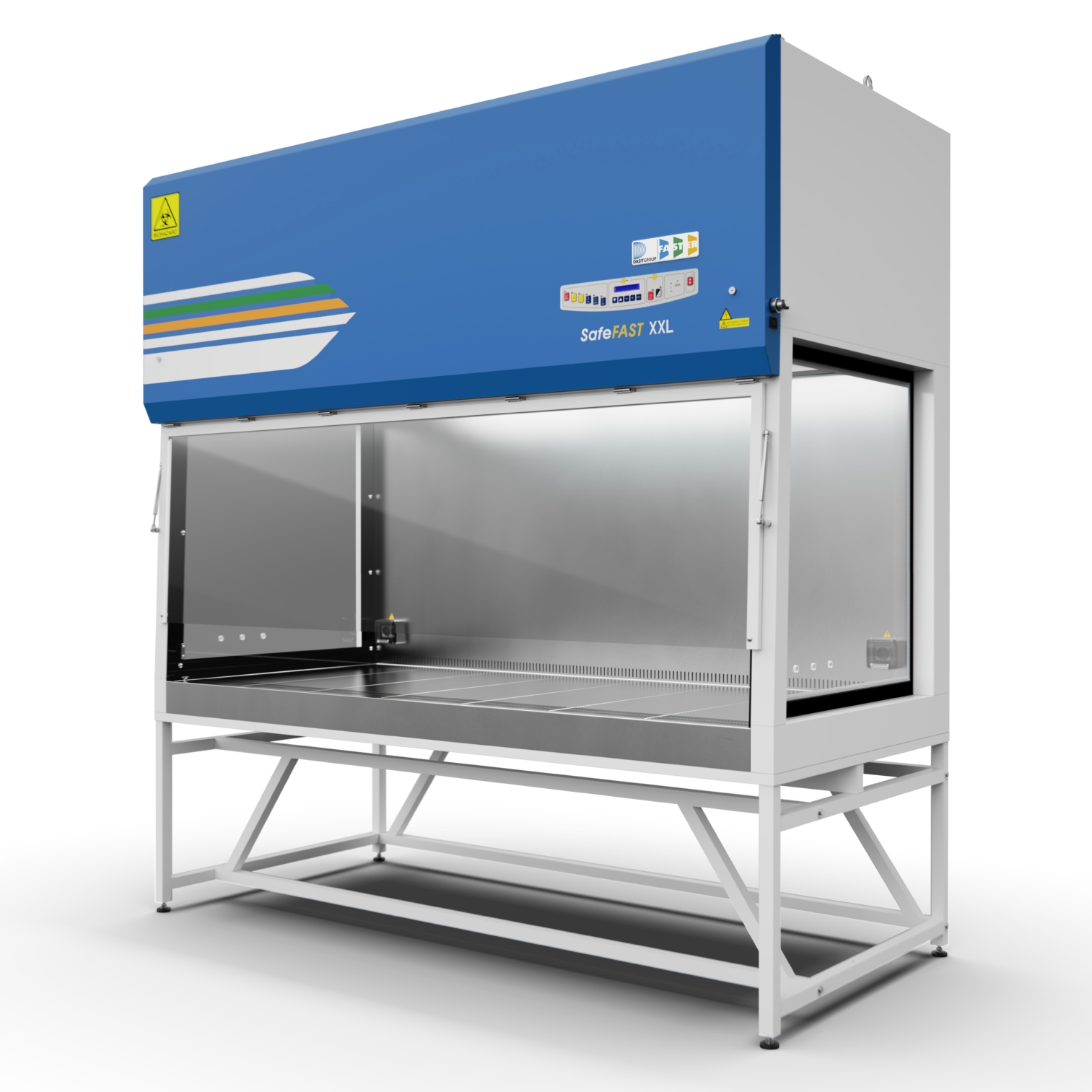

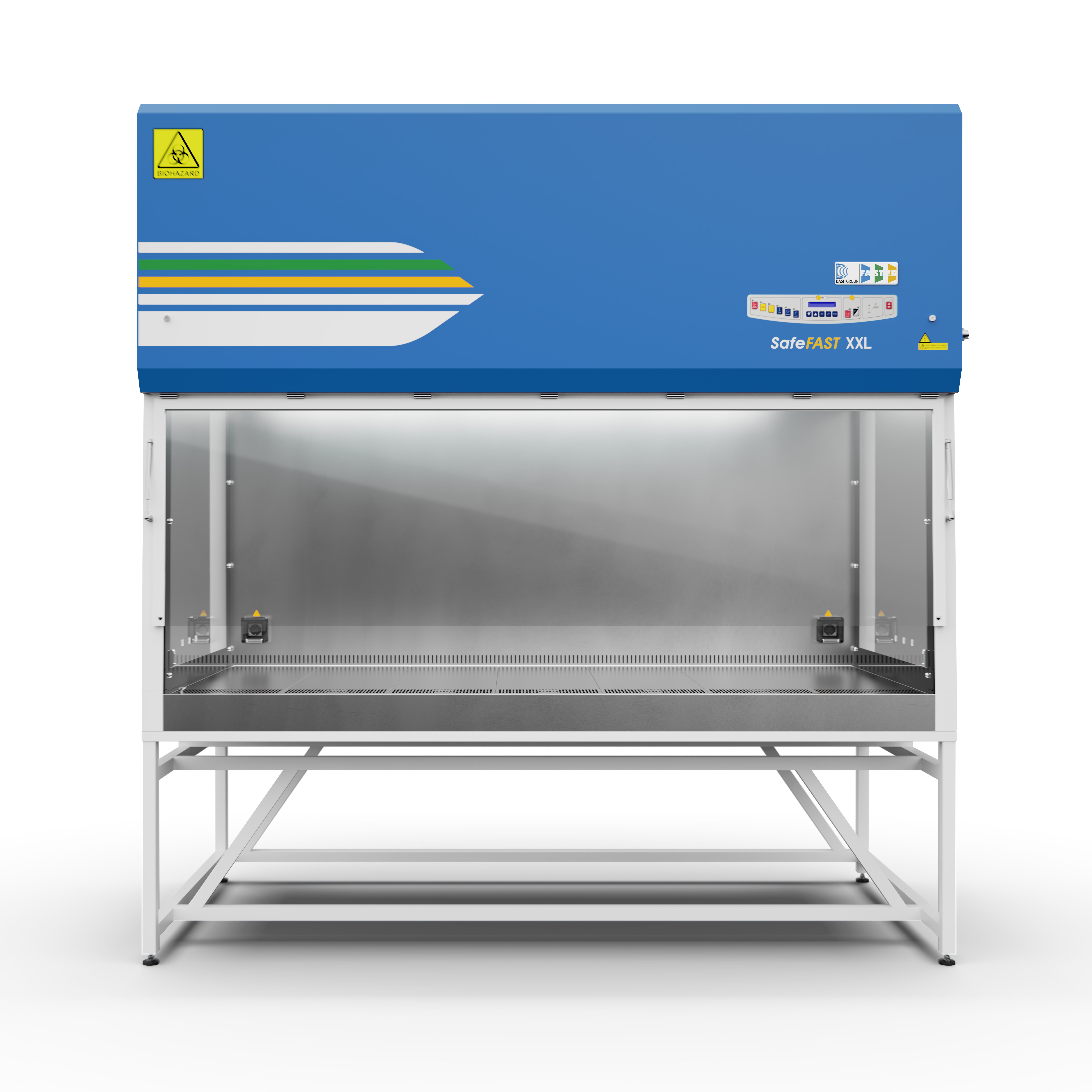

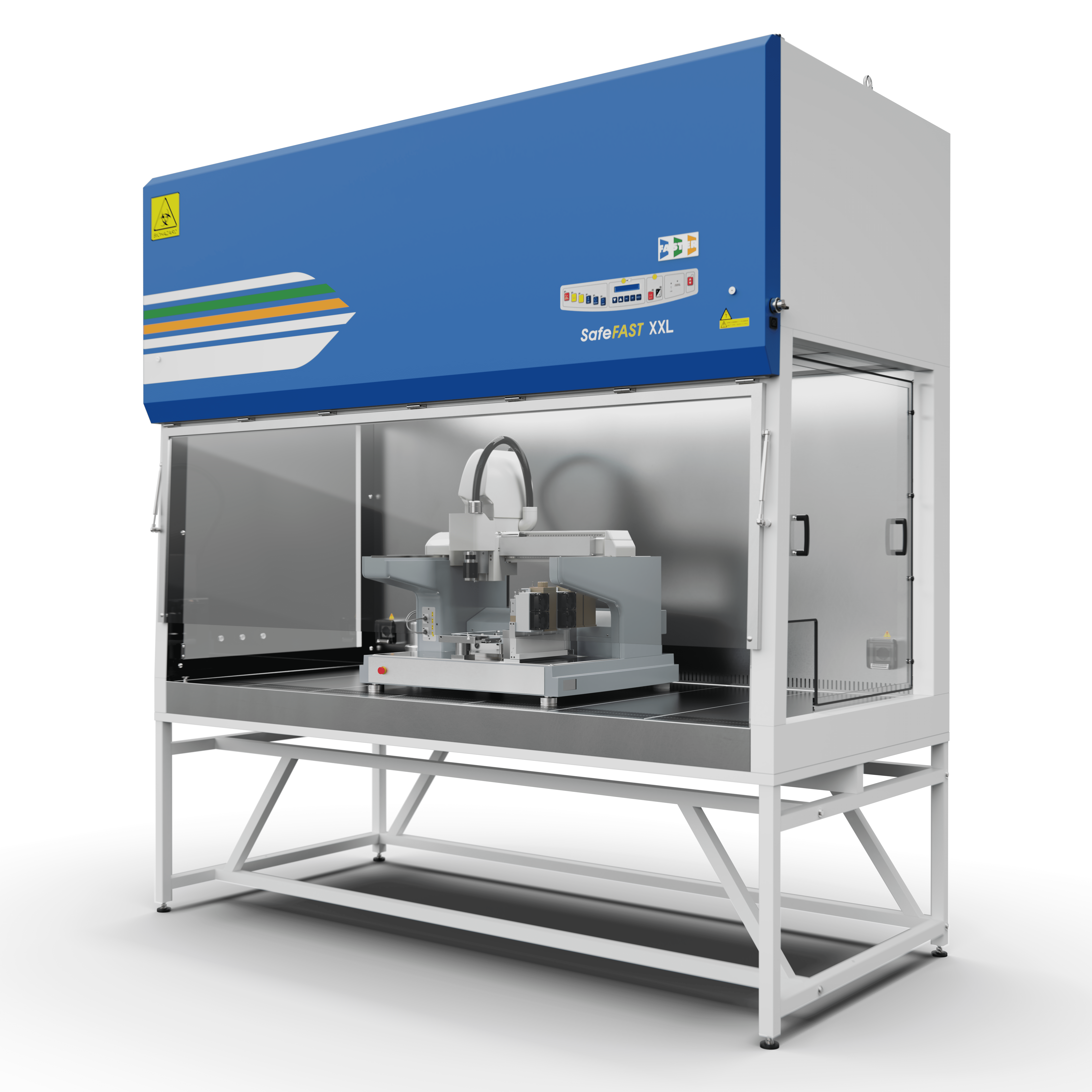

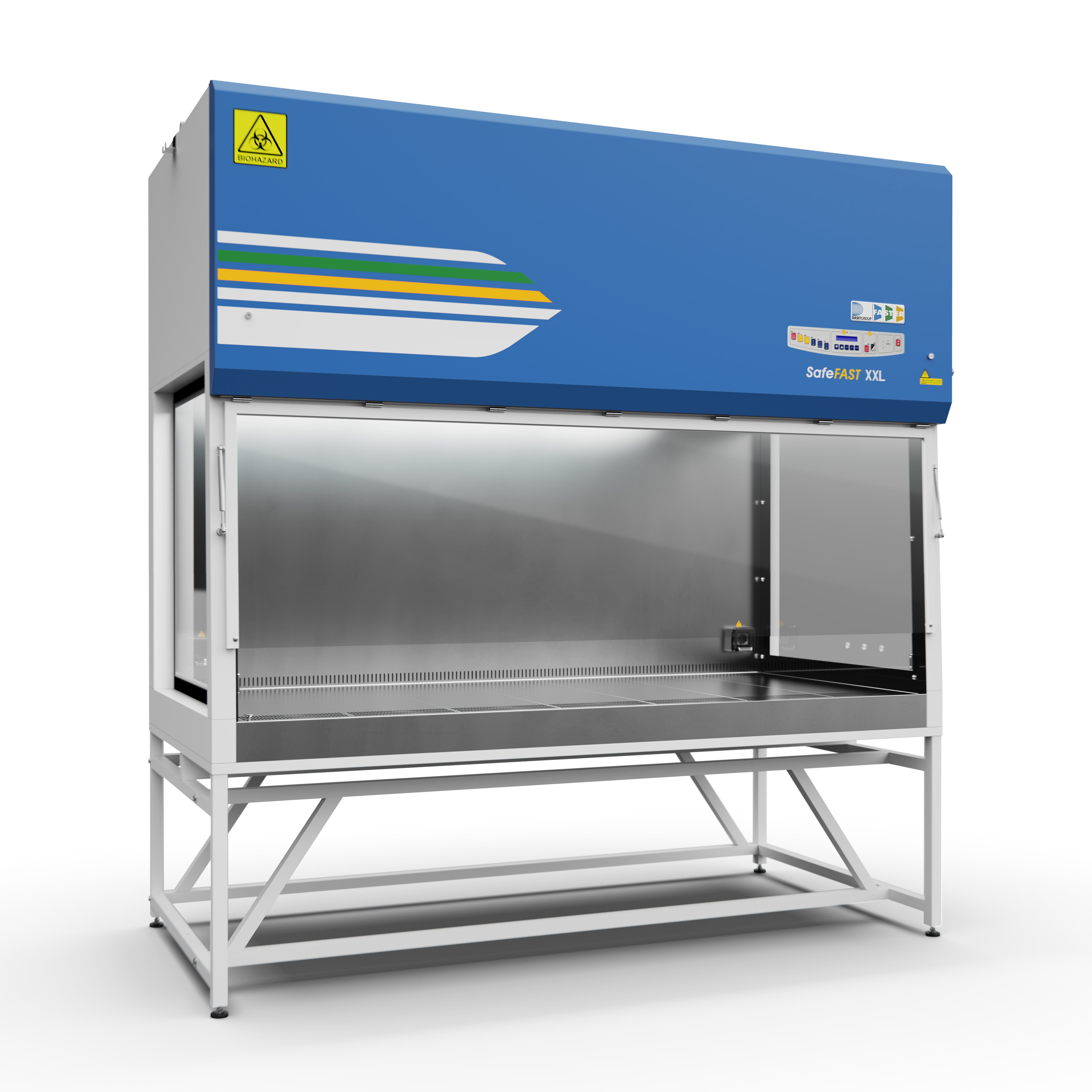

SafeFAST XXL – Extra-Large Microbiological Safety Cabinet

Overview

Custom-sized Class II safety cabinet designed for large laboratory robots. Ensures ISO 3 air cleanliness and operator protection with energy-efficient ECS® system and low-noise operation.



Product Details

Key Features

  • Specifically designed for housing large lab automation equipment including liquid handlers and filling robots
  • Class II A2 microbiological safety cabinet compliant with EN 12469:2000
  • ISO 3 air cleanliness (ISO 14644-1)
  • Extra-large working dimensions: height and depth of 1000 mm, width up to 2500 mm
  • Unique ECS® microprocessor for energy-efficient performance and automatic airflow control
  • Electronically controlled motor-blower with pressure-drop compensation
  • HEPA/ULPA filters with low pressure drop (H14), up to 30% energy savings
  • Quiet operation thanks to textile plenum antivibration fan mounts and optimised software
  • Reinforced segmented AISI 304L stainless steel work surface (up to 500 kg load)
  • Stratified safety glass front window with gas springs for full access
  • Antimicrobial Alesta® epoxy coating
  • Side tempered glass panels with service holes for cabling and taps
  • Class H14 filters: 70% re-circulated, 30% exhausted
  • Negative pressure plenum for operator and environmental safety
  • Integrated IP66-rated sockets (2x)
  • Full digital status display and alarm system
  • Custom-built to order, tailored to client needs



Typical Applications

  • Automated laboratory workflows
  • GMP and GLP facilities requiring enclosed robot containment
  • Biotech, pharmaceutical and clinical diagnostics settings



Available Sizes

Model Overall Dimensions (W×D×H, mm) Internal Dimensions (W×D×H, mm) Weight (kg) Exhaust Flow (m³/h) Noise Level (dB(A)) Lighting (lux) Power (kW)
SafeFAST XXL 212 1332 × 1182 × 2530 1190 × 1000 × 1000 350 390 <61 >1000 1.06
SafeFAST XXL 215 1637 × 1182 × 2530 1495 × 1000 × 1000 470 486 <63 >1200 1.40
SafeFAST XXL 218 1942 × 1182 × 2530 1812 × 1000 × 1000 510 585 <66 >1300 1.50
SafeFAST XXL 222 2398 × 1182 × 2530 2256 × 1000 × 1000 580 715 <66 >1500 1.70

Compliance and Quality

  • ISO 14644-1 (Class ISO 3)
  • EN 12469:2000 compliant
  • FAT certificate provided for each unit
  • Tests include: airflow speed, noise, filter leakage, KI-discuss, vibration, lighting and electrical conformity



  • Touchscreen monitor
  • UV sterilising lamp with programmable timers
  • Additional IP66 electrical/data sockets
  • VHP decontamination kit
  • Armrest and stainless-steel hanging bar
  • Service taps
  • Exhaust ducting (hard or thimble connection)
  • Stands: fixed, wheeled, telescopic or automatic lifting
  • Volt-free contact
  • REMOTEFAST PC interface for remote monitoring

Customisation
SafeFAST XXL units are fully customisable, allowing Faster to tailor the design to your specific requirements. Speak to MSC for advice on planning, delivery and integration into your workspace.
