Thermo Aquanex Ultrapure Water Purification System

Why Aquanex Stands Out

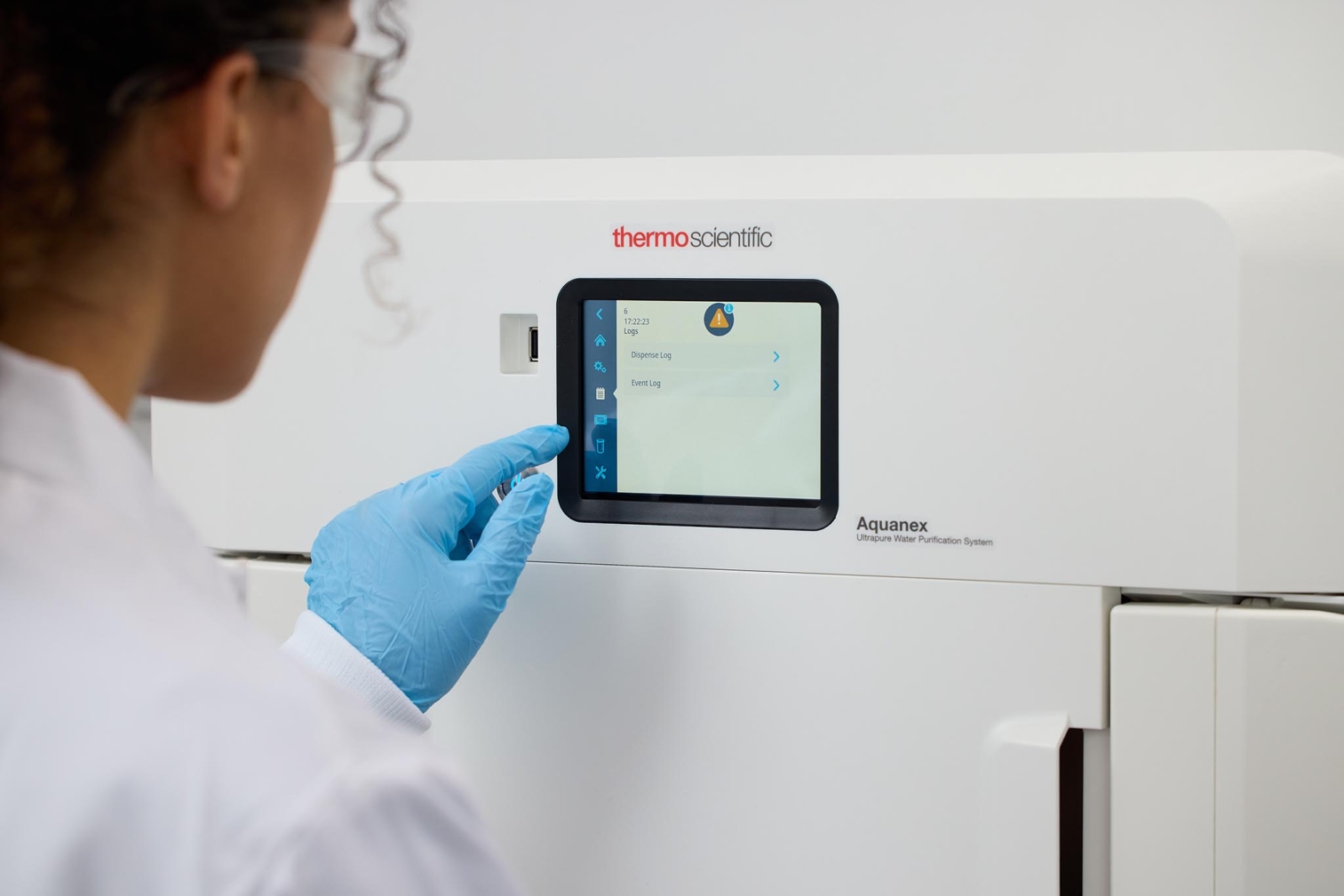

• Intuitive Touch Screen & Smart Dispensing
  Full-colour touchscreen guides users seamlessly through setup, calibration, cartridge changes and dispensing. The pipette-style Touch Smart Dispenser can be used in stand or hand-held mode—ideal for both everyday and larger-volume applications.
• Effortless Maintenance
    Magnetic front panel design lets users access key components—UV lamp, RO assembly, ultrafilter—without tools or screws. Consumables are automatically recognised by the unit upon insertion, reducing downtime and handling complexity.
• Advanced Water Control Modes
    Choose from three modes based on lab workflow and resource efficiency:
    – Water Saver Mode: Recirculates during tank fill to reduce waste—up to 50% more water-efficient.
    – DI Pack Saver Mode: Conserves consumables by limiting recirculation.
    – Dynamic Mode: The system evaluates feed water quality and balances savings and consumable longevity.
• High Accuracy & Secure Operation
    Two-point calibration ensures dispensing precision. The system supports password-secured log-in, full event logging, leak detection with automatic shutdown and direct export of logs via USB (PDF or CSV).
• Flexible Deployment

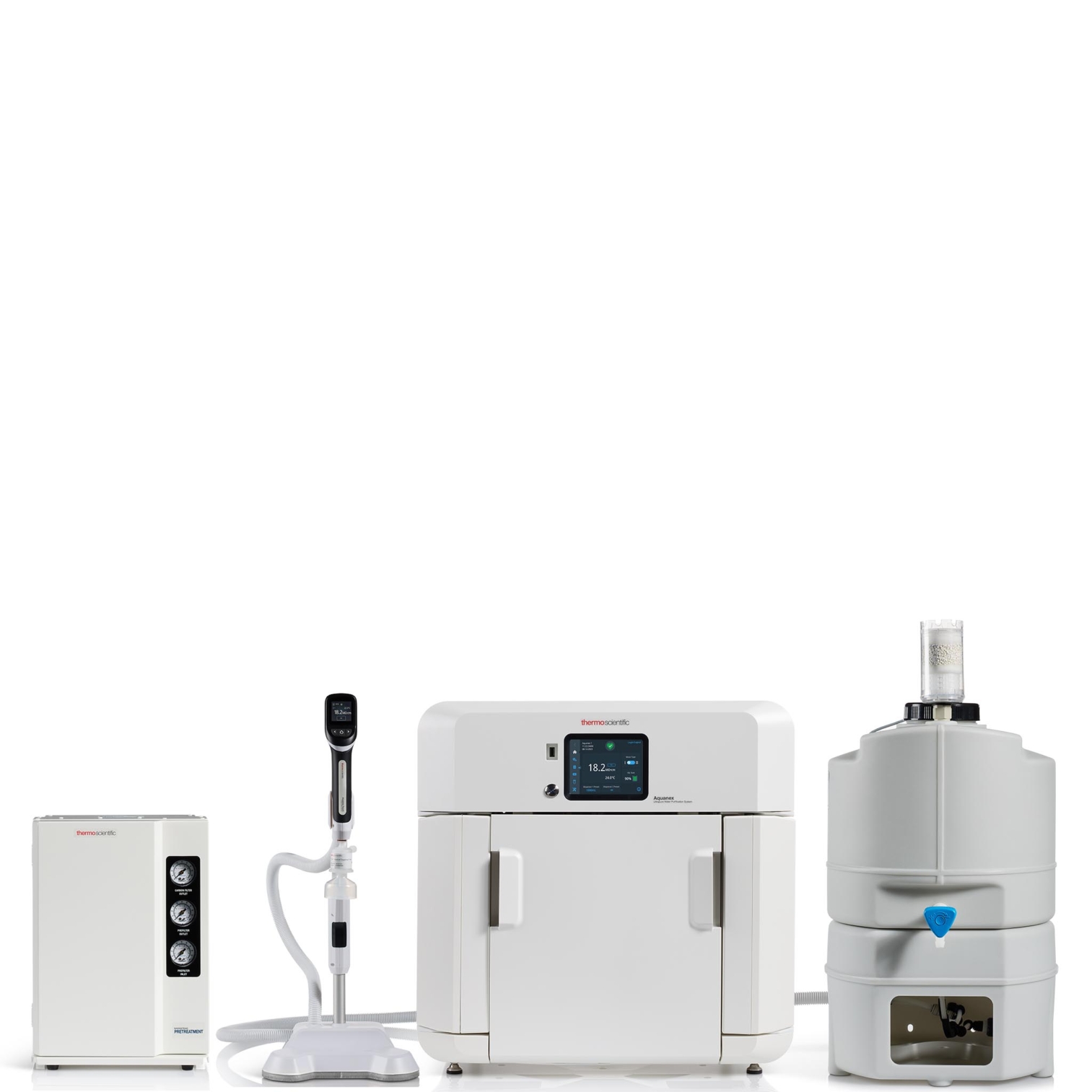

    Available in compact 10 L internal tank or 30 L external tank configurations. Both models support bench or optional wall mounting to suit lab layouts.

Reliable Water Quality
  Delivers TOC levels below 3 ppb. Incorporates RO, UV oxidation, deionisation, ultrafiltration, plus a 0.1 μm final point-of-use filter (with optional CO₂ absorber) to meet demanding quality standards for life sciences and analytical applications.

Technical Highlights

• Feed Water Requirements
    Potable tap water, with the following conditions (Barnstead pretreatment recommended):
    – SDI < 3
    – Turbidity < 1 NTU
    – Conductivity up to 1500 µS/cm
    – Chlorine < 0.1 ppm
    – pH 4–11
    – Temperature 2–35 °C
    – Pressure 2–6 bar (use pressure reducer if above 6 bar).
• Dispensing Performance
    Flow rate ≥1.5 L/min. Volumetric accuracy ±2% for volumes ≥100 mL. Offers both manual and volumetric dispensing modes, switchable between Type I and Type II water.
• Consumable Life Cycle
    – DI Cartridge Set: up to 12 months
    – Ultrafilter & UV Lamp: up to 24 months
    – RO and final filters: scheduled alerts issued by system
• Safety & Connectivity
    – Leak detection with auto shutoff
    – 2 USB A ports, 1 USB B, Ethernet for data export
    – Dry-run protection and potential-free contact (up to 30 V, 2 A)
• Operational Modes
    – Pack Saver, Water Saver, Dynamic ensure optimised performance
    – Secure user access via login controls

Datasets & Interface Details

• Materials in Contact with Water
    High-grade components ensure purity and longevity: nylon-injected pump head, quartz UV lamp, stainless-steel UV housing, polypropylene DI pack casings, PES ultrafilter, polyethylene tubing, EPDM O-rings.
• Power Supply
    Universal input 100–240 VAC, up to 120 W consumption, 5 A max draw.
